Demonstrate A* for a close orbital maneuver.

------------------------------------------------------------------------
See also AStarSearch, GenerateGrid, RaDec2U, Plot3D, TextS, Unit
------------------------------------------------------------------------

Contents

%---------------------------------------------------------------------------
%   Copyright (c) 2003 Princeton Satellite Systems, Inc.
%   All rights reserved.
%---------------------------------------------------------------------------

Define the grid

%----------------
n                     = 48;
r                     = 100;
stayout(2).u          = Unit([0;1.0;.6]);
stayout(2).angle      = pi/10;
stayout(2).rOffset    = [0;0;0];
stayout(1).u          = Unit([1;0;0]);
stayout(1).angle      = pi/10;
stayout(1).rOffset    = [0;0;0];

[rA, dec, a, kDec]    = GenerateGrid( n, r, stayout, 'globe' );

d.myData.dec          = dec;
d.myData.rA           = rA;
d.myData.a            = a;
d.myData.kDec         = kDec;
d.myData.n            = length(a);
d.myData.v            = [1;0;0];
d.n                   = length(a);

startNode             = 1; % The pole
endNode               = 1113;

We use the same function for path cost and maneuver cost

%---------------------------------------------------------
d.pathCostEstimateFunction = 'ManeuverCost';
d.traverseCostFunction     = 'ManeuverCost';
d.successorNodesFunction   = 'ManeuverSuccessorNodes';

path = AStarSearch( startNode, endNode, d );
GenerateGrid( n, r, stayout, 'globe' );

if( ~isempty(path) )
  hold on
  disp(path)
% path = [	1	2	9	18	29	42	57	74	93	136	160	186	214	244	276
%   311	348	387	428	471	516	563	612	660	706	750	792	832	833	904	905	939
%   969	999	1025	1051	1073	1095	1113	];
  rA  = d.myData.rA(path);
  dec = d.myData.dec(path);

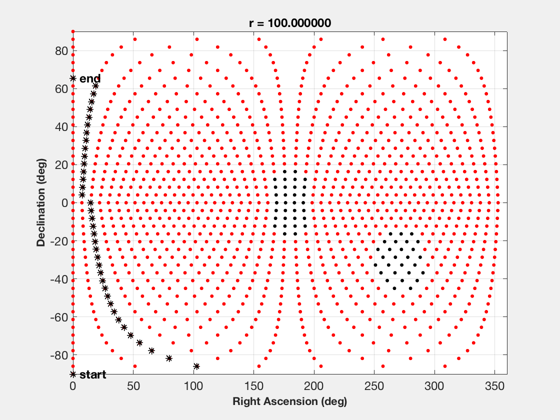

  plot(rA,dec,'k*')
  TextS(rA(1),dec(1),'  start');
  TextS(rA(end),dec(end),'  end' );
  uPath = RaDec2U( rA*pi/180,dec*pi/180 );

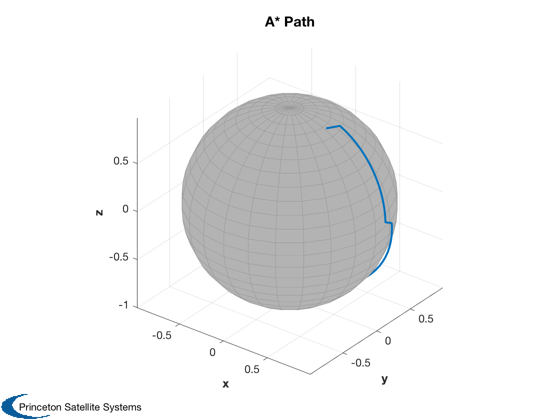

  Plot3D( uPath,'x','y','z','A* Path',0.98 );
end

%--------------------------------------
% PSS internal file version information
%--------------------------------------

  Columns 1 through 6
           1           4          11          20          31          44
  Columns 7 through 12
          59          76          95         116         139         164
  Columns 13 through 18
         191         220         251         284         319         356
  Columns 19 through 24
         395         436         479         524         571         619
  Columns 25 through 30
         666         711         754         795         834         871
  Columns 31 through 36
         906         939         970         999        1026        1051
  Columns 37 through 39
        1074        1095        1113
