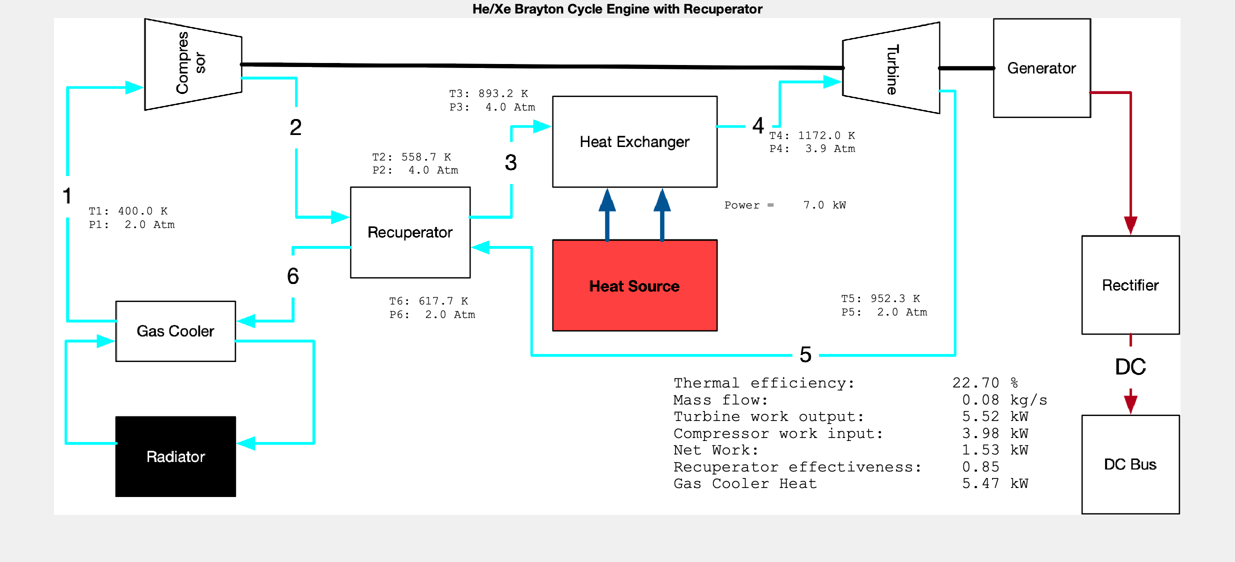

Brayton Cycle
Looks at different cycles. Need to pick He/Xe mix Provides gamma, molecular weight and cP

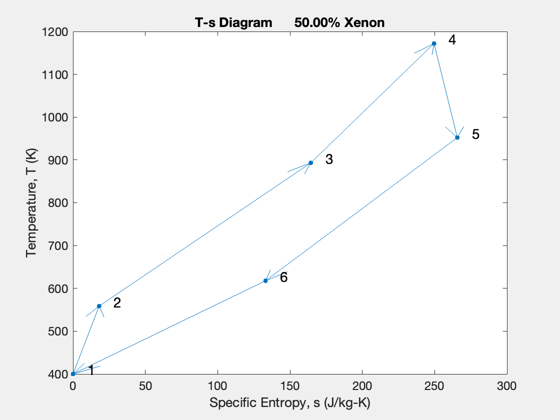

% Two choices of he/xe % From a turbomachinery perspective %-------------------------------------------------------------------------- %-------------------------------------------------------------------------- % Copyright (c) 2023 Princeton Satellite Systems, Inc. % All rights reserved. %-------------------------------------------------------------------------- % Since 2023.1 %-------------------------------------------------------------------------- % Heat transfer parameters r = 0.1; h = 0.02; a = h*h; n = 2*pi*r/h; p = 2; t = 1172; pR = 2; nC = 0.8; nT = 0.82; % Cycle design fXenon= 0.5; CycleDesign(fXenon,7,400,t,p,a,r,n,pR,nC,nT) set(gcf,'Name',sprintf('Brayton Cycle %10.2f%% Xenon',fXenon*100));

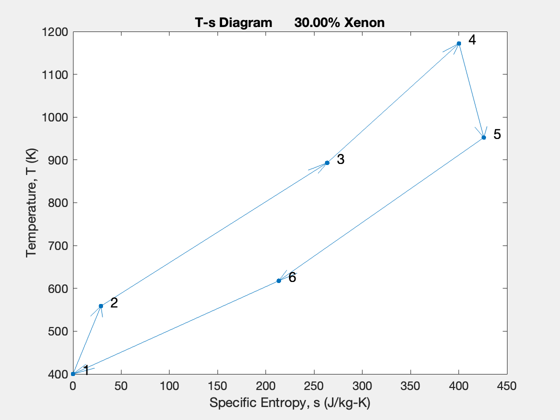

Lower Xenon fraction
fXenon = 0.3;
[dOut,dP] = CycleDesign(fXenon, 7,400,t,p,a,r,n,pR,nC,nT);
CycleDesign(fXenon,7,400,t,p,a,r,n,pR,nC,nT)
k = 1;
s{k,1} = 'Recuperator effectiveness'; s{k,2} = sprintf('%12.2f',dOut.nr); k = k + 1;
s{k,1} = 'Compressor efficiency'; s{k,2} = sprintf('%12.2f',dOut.nc); k = k + 1;
s{k,1} = 'Turbine efficiency'; s{k,2} = sprintf('%12.2f',dOut.nt); k = k + 1;
s{k,1} = 'Exchanger pressure drop'; s{k,2} = sprintf('%12.2f',dOut.nPX); k = k + 1;
s{k,1} = 'Molecular weight'; s{k,2} = sprintf('%12.3f (kg/mole)',dOut.molWt); k = k + 1;
s{k,1} = 'Specific heat'; s{k,2} = sprintf('%12.1f (J/kg-deg-K)',dOut.cP); k = k + 1;
s{k,1} = 'Gamma'; s{k,2} = sprintf('%12.1f ',dOut.gamma); k = k + 1;
CreateLatexTable(s,'CycleParameters');
DisplayLatexTable(s)
%--------------------------------------
% $Date$
% $Id: 33155876e17dff828eb021b1b523a4e627b94c96 $
Recuperator effectiveness 0.85 Fixed Variable
Compressor efficiency 0.80 Heat Rate O\&M O\&M
Turbine efficiency 0.82 Btu/kWh \$/kW-yr \$/MWh
Exchanger pressure drop 0.99 8800 42.10 4.60
Molecular weight 0.042 (kg/mole) 9750 70.00 7.10
Specific heat 495.7 (J/kg-deg-K) 10300 22.00 1.30
Gamma 1.7 8960 50.90 5.00
