Chaotic Behavior Reactor Simulation

Simulates a chemical reactor that can undergo chaotic behavior.

Since version 1.
-------------------------------------------------------------------------
Reference: Scott, S.K. (1994.) Oscillations, Waves and Chaos
           in Chemical Reactions. pp. 27-39.
-------------------------------------------------------------------------
See also:    RHSBZ, TimeGUI, Plot2D
-------------------------------------------------------------------------

Global for the time GUI
Model parameters
The steady-state state
The control sampling period and the simulation integration time step
Number of sim steps
Plotting arrays
Time statistics function
Initialize the time display
Run the simulation
Plot results

%--------------------------------------------------------------------------
%   Copyright (c) 2013 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Global for the time GUI

Creates a global variable for the time GUI, which displays the time remaining and estimated completion of a simulation. It computes the time left to go in the simulation, the predicted finish time and the ratio of simulation time to real time. -------------------------------------------------------------------------

global simulationAction
simulationAction = ' ';

Model parameters

-----------------

d.eps   = 1e-2;     % kC*B/k5*A
d.q     = 9e-5;     % 2*k3*k4/k2*k5
d.f     = 0.25;     % Stoichiometric factor

The steady-state state

-----------------------

xSS         = [1;1]*0.5*(1-(d.f+d.q) + sqrt((d.f+d.q-1)^2+4*d.q*(1+d.f)));
x           = 0.9*xSS;

The control sampling period and the simulation integration time step

---------------------------------------------------------------------

dT          = 0.001;

Number of sim steps

--------------------

nSim        = 6000;
tEnd        = nSim*dT;

Plotting arrays

----------------

tPlot      = zeros(1,nSim);
xPlot      = zeros(2,nSim);

Time statistics function

-------------------------

tToGoMem      = [];

Initialize the time display

----------------------------

tToGoMem.lastJD        = 0;
tToGoMem.lastStepsDone = 0;
tToGoMem.kAve          = 0;
[ ratioRealTime, tToGoMem ] =  TimeGUI( nSim, 0, tToGoMem, 0, dT, ...
    'BZ Reactor Simulation' );

xODEOptions = odeset( 'AbsTol', 1e-8, 'RelTol', 1e-8 ) ;

Run the simulation

See RHSBZ.m which gives a model of a Belousov-Zhabotinskii reactor. -------------------------------------------------------------------

t = 0;
for k = 1:nSim

  % Display the status message
  %---------------------------
  [ ratioRealTime, tToGoMem ] = TimeGUI( nSim,k,tToGoMem,ratioRealTime,dT);

  [z, x]      = ode113( 'RHSBZ', [t t + dT], x, xODEOptions, d );
  x           = x(end,:)';
  t           = t + dT;
  tPlot(k)    = t;
  xPlot(:,k)  = x;

  % Time control
  %-------------
  switch simulationAction
    case 'pause'
      pause
      simulationAction = ' ';
    case 'stop'
      return;
    case 'plot'
      break;
  end

end

TimeGUI( 'close' )

Plot results

-------------

j       = 1:k;
xPlot   = xPlot(:,j);
[t, tL]	= TimeLabl( tPlot(j) );

% Plot the steady state on each plot
%-----------------------------------
xSS     = DupVect(xSS,k);

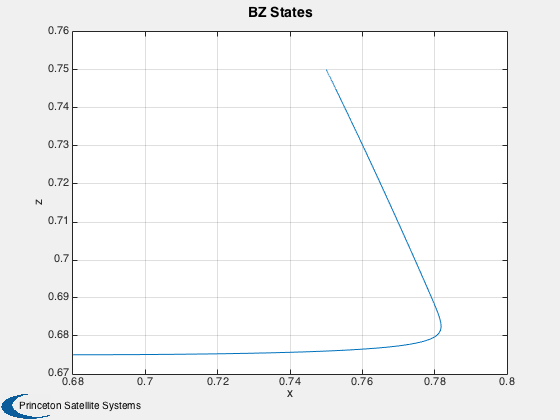

Plot2D( xPlot(1,:), xPlot(2,:), 'x', 'z','BZ States')

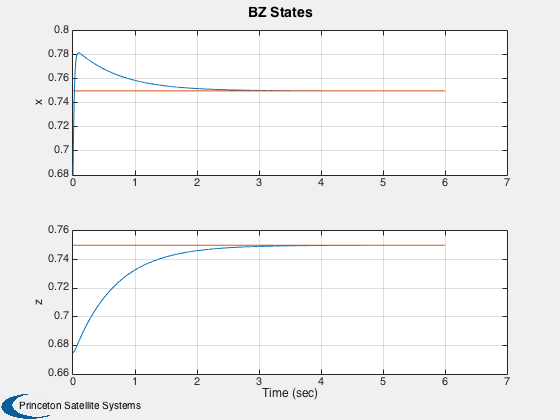

Plot2D( t, [xPlot;xSS],tL,{'x' 'z'},'BZ States','lin',['[1 3]';'[2 4]'])

%--------------------------------------
% PSS internal file version information
%--------------------------------------
