Batch Reactor Simulation

Simulates a batch reactor. Exothemic reaction carried out in a perfectly mixed batch reactor with a constant temperature cooling coil. Second-order irreversbile reaction.

Since version 1.
-------------------------------------------------------------------------
Reference: Henson, M. A. and D. E. Seborg. (1997.) Nonlinear
           Process Control, Prentice-Hall. pp. 312-313.
-------------------------------------------------------------------------
See also:  RHSBatchR, TimeGUI, Plot2D
-------------------------------------------------------------------------

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 2013 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Model parameters

-----------------

d.dH   = -30;   % Delta H/rho*C liter - deg-C/gmole
d.uA   = 1e-3;  % UA/VrhoC 1/s
d.tC   = 20;    % mol/L
d.k0   = 1e8;   % Frequency factor (liter/gmole-sec)
d.eAR  = 7.5e3; % Ea/R deg-C

State [cA;t]

-------------

x           = [0.9;10];
t           = 0;

The control sampling period and the simulation integration time step

---------------------------------------------------------------------

dT          = 1;

Number of sim steps

--------------------

nSim        = 240;
tEnd        = nSim*dT;

Plotting arrays

----------------

tPlot      = zeros(1,nSim);
xPlot      = zeros(2,nSim);

Run the simulation

See RHSBatchR.m which models a batch reactor. ---------------------------------------------

for k = 1:nSim
	x           = RK4( 'RHSBatchR', x, dT, t, d );
	t           = t + dT;
	tPlot(k)    = t;
	xPlot(:,k)  = x;
end

Plot results

Gives open loop response. -------------------------

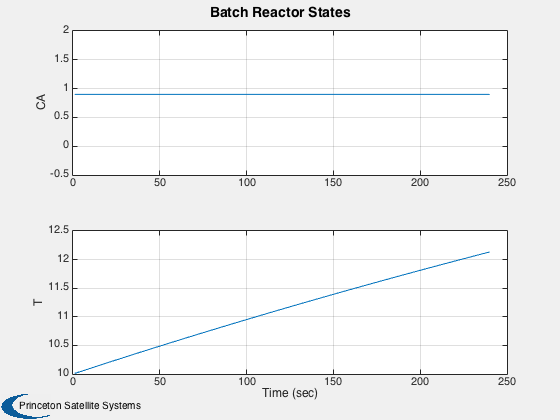

Plot2D( tPlot, xPlot,'Time (sec)',['CA';'T '],'Batch Reactor States')

%--------------------------------------
