Continuous Stirred Tank Reactor Simulation

Simulates a CSTR with an irreversible first order reaction. The reactor
temperature controller is cascaded to a coolant temperature loop, which
is a standard approach useed in industrial reactor control.

Since version 1.
-------------------------------------------------------------------------
Reference: Henson, M. A. and D. E. Seborg. (1997.) Nonlinear Process
           Control, Prentice-Hall. pp. 198-199.
-------------------------------------------------------------------------
See also:    RHSICSTR, TimeGUI, Plot2D
-------------------------------------------------------------------------

Model parameters
State
The control sampling period and the simulation integration time step
Number of sim steps
Plotting arrays
Run the simulation
Plot results

%--------------------------------------------------------------------------
%   Copyright (c) 2001 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Model parameters

The model is nondimensionalized. --------------------------------

d.dA    = 0.072;
d.gamma = 20;
d.b     = 8;
d.beta  = 0.3;
d.u     = 0;

State

[composition; temperature]

%--------------
x       = [1;2];
t       = 0;

The control sampling period and the simulation integration time step

---------------------------------------------------------------------

dT      = 1;

Number of sim steps

--------------------

nSim    = 100;
tEnd    = nSim*dT;

Plotting arrays

----------------

tPlot   = zeros(1,nSim);
xPlot   = zeros(2,nSim);

Run the simulation

See RHSICSTR.m which gives a model of a CSTR with an irreversible first order reaction. -------------------------------------------------------------------------

for k = 1:nSim
  x           = RK4( 'RHSICSTR', x, dT, t, d );
  t           = t + dT;
  tPlot(k)    = t;
  xPlot(:,k)  = x;
end

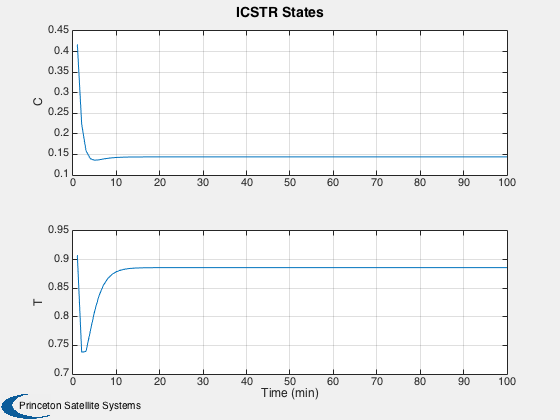

Plot results

Open loop results are shown. -------------

Plot2D( tPlot, xPlot,'Time (min)',['C';'T'],'ICSTR States')

%--------------------------------------
