Multiarm Robot Demo

A robot with a branch. -------------------------------------------------------------------------

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 1999 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Simulation time control

%------------------------
tEnd     = 10;
nTest    = 4;
dT       = 0.025;
nSim     = tEnd/dT+1;
tPause   = 0.1; % Seconds to pause each frame for the movie

% Vectors from the hinges to the cm of each link
%-----------------------------------------------
c1 = [ 0;  0; 0.5];
c2 = [ 0;  1; 0];
c3 = [ 0; -1; 0];

% Vectors to the link tip. If there is a branch there will be more than
% on vector
%----------------------------------------------------------------------
r1  = [ 1 -1;0 0;1 1]; % The first link has two hinges
r2  = [  2; 0;  0];
r3  = [ -2; 0;  0];

% Transformation matrix at the base of the link
%----------------------------------------------
R1 = eye(3);
R2 = eye(3);
R3 = eye(3);

% Sliding friction data
%----------------------
cF          = struct('fStatic', [0;0;0],'kStatic', [1;1;1],...
                     'fCoulomb',[0;0;0],'kCoulomb',[1;1;1],...
                     'bViscous',[0;0;0]);

% The initialization function uses parameter pairs. The ones starting with
% name are links. Entering name creates a new link. All link parameters
% must be specified before the next name
%-------------------------------------------------------------------------
h           = RHSRobotInitialize( 'robot name','Multiarm Robot',...
            'friction function', @FrictionSmooth,...
            'friction data', cF,...
            'name','Link1','mass',4,'radius',0.2,'center of mass',c1,'parent',0,'r parent',1,'hinge','prismatic','state',1,... % Link 1
            'link vector',r1,'inertia',eye(3), 'transformation matrix',R1,...
            'name','Link2','mass',6,'radius',0.2,'center of mass',c2,'parent',1,'r parent', 1,'hinge','revolute','state',2,... % Link 2
            'link vector',r2,'inertia',eye(3), 'transformation matrix',R2,...
            'name','Link3','mass',6,'radius',0.2,'center of mass',c3,'parent',1,'r parent', 2,'hinge','revolute','state',3,... % Link 3
            'link vector',r3,'inertia',eye(3), 'transformation matrix',R3);

Simulation

%------------
x       = [0;0;0;0; -0.1; 0.1];

% Run the simulation
%-------------------
t       = dT*(0:(nSim-1));
xPlot	= zeros(length(x),nSim);

for k = 1:nSim

    % Plotting array
    %---------------
    xPlot(:,k)  = x;

    % Enter the motor torques into the dynamics model
    %-----------------------------------------------
    x           = RK4( 'RHSRobot', x, dT, t(k), h );

end

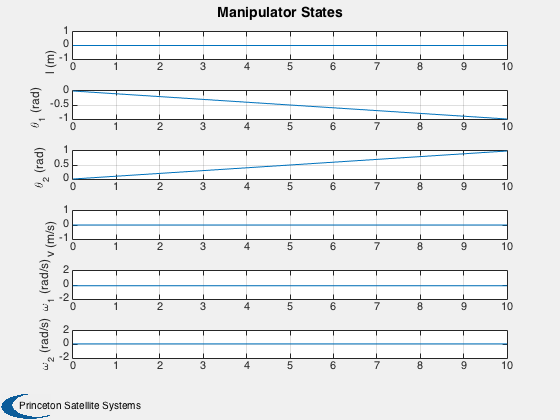

Plot the results

%------------------

% Plot labels
%------------
yL = {'l (m)'  '\theta_1 (rad)' '\theta_2 (rad)' 'v (m/s)' '\omega_1 (rad/s)' '\omega_2 (rad/s)' };

[t,tL] = TimeLabl(t);

Plot2D( t, xPlot, t, yL, 'Manipulator States' );

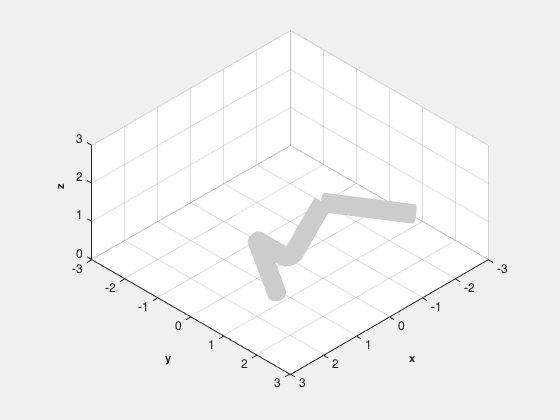

% Animate
%--------
DrawRobot( 'initialize', h )
DrawRobot( 'update', xPlot, h, tPause );


%--------------------------------------
% PSS internal file version information
%--------------------------------------

Published with MATLAB® R2014b
