RP Manipulator Demo

Demonstrate an RP manipulator. ------------------------------------------------------------------------- Reference: Craig, "Introduction to Robotics" Example 6.5, p. 209

%--------------------------------------------------------------------------

%--------------------------------------------------------------------------
%   Copyright (c) 1999, 2013 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Initialize

%------------

% Simulation time control
%------------------------
tEnd     = 10;
dT       = 0.025;
nSim     = tEnd/dT+1;

% The initialization function uses parameter pairs. The ones starting with
% name are links. Entering name creates a new link. All link parameters
% must be specified before the next name.
%-------------------------------------------------------------------------
h = RHSRobotInitialize( 'robot name','RP Manipulator',...
            'gravity vector',[0;-9.806;0],...
            'name','Link1','mass',4,'radius',0.2,...
            'center of mass',[1.5;0;0],'parent',0,'r parent',1,...
            'state',1,'hinge','revolute',...% Link 1
            'link vector',[3;  0;   0],'inertia',diag([10 20 30]),...
            'transformation matrix',eye(3),...
            'name','Link2','mass',6,'radius',0.2,...
            'center of mass',[0;0;0],'parent',1,...
            'r parent',1,'state',2,'hinge','prismatic',...% Link 2
            'link vector',[0;0;0],'inertia',diag([1 2 3]),...
            'transformation matrix',[0 0 -1;0 1 0;1 0 0]);

Simulate

%----------
x       = [.4; 1.2; 0.2; 0.3];

% Run the simulation
%-------------------
t       = dT*(0:(nSim-1));
xPlot	= zeros(length(x),nSim);

for k = 1:nSim

    % Plotting array
    %---------------
    xPlot(:,k)  = x;

    % Enter the motor torques into the dynamics model
    %-----------------------------------------------
    x           = RK4( 'RHSRobot', x, dT, t(k), h );

end

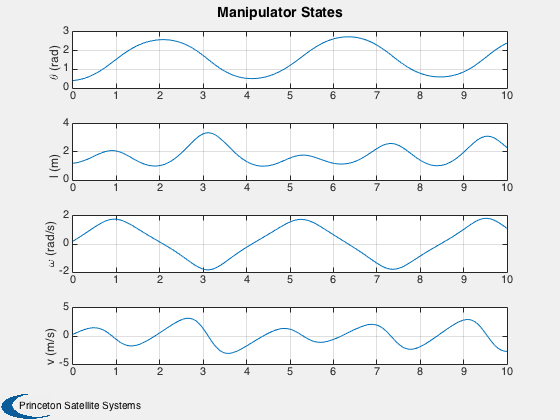

Plot the results

%------------------

% Plot labels
%------------
yL = {'\theta (rad)' 'l (m)' '\omega (rad/s)' 'v (m/s)'};

[t,tL] = TimeLabl(t);

Plot2D( t, xPlot, t, yL, 'Manipulator States' );

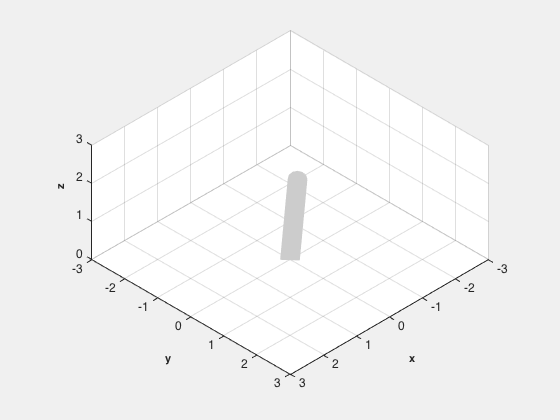

% Animate
%--------
DrawRobot( 'initialize', h )
DrawRobot( 'update', xPlot, h, 0.1 );

%--------------------------------------
% PSS internal file version information
%--------------------------------------

Published with MATLAB® R2014b
