Simulate a matrix converter in steady state.

Simulate a matrix converter in steady state. A matrix converter converts n phase currents into m phase currents without an intermediate DC stage. In effect it pieces together the n phase currents using switches into the m phases. This simulation simulates the steady-state output from a matrix converter.

------------------------------------------------------------------------
See also NewFig, XLabelS, YLabelS, delta
------------------------------------------------------------------------

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 2009-2010 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Intialize the data

fs   = 2281;  % Switching frequency
fo   = 60;    % Output frequency

ws   = 2*pi*fs;
wn   = 2*pi*fo;
vtg  = 6/7.2;

fsw  = fs + fo;
tsw  = 1/fsw;
wf   = 2*pi*fsw;
dT   = tsw/7200;
TotT = 0.03;

prdnos   = round(TotT/tsw);
sbintnos = tsw/dT;
sbintnos = round(sbintnos);
simlen   = prdnos*sbintnos + 1;

iassto = zeros(simlen,1);
ibssto = zeros(simlen,1);
icssto = zeros(simlen,1);
iansto = zeros(simlen,1);
ibnsto = zeros(simlen,1);
icnsto = zeros(simlen,1);
tsto   = zeros(simlen,1);

S1 = zeros(round(sbintnos),1);
S2 = zeros(round(sbintnos),1);
S3 = zeros(round(sbintnos),1);

alpha = 45; % in degrees

Switches

for j = 1:sbintnos
    ang = j*(360/sbintnos);
    if ang <= alpha
        S1(j) = 1;
        S2(j) = 0;
        S3(j) = 0;
    elseif ang <= 60
        S1(j) = 0;
        S2(j) = 1;
        S3(j) = 0;
    elseif ang <= 120-alpha
        S1(j) = 1;
        S2(j) = 0;
        S3(j) = 0;
    elseif ang <= 120+alpha
        S1(j) = 0;
        S2(j) = 1;
        S3(j) = 0;
    elseif ang <= 180
        S1(j) = 0;
        S2(j) = 0;
        S3(j) = 1;
    elseif ang <= 240-alpha
        S1(j) = 0;
        S2(j) = 1;
        S3(j) = 0;
    elseif ang <= 240+alpha
        S1(j) = 0;
        S2(j) = 0;
        S3(j) = 1;
    elseif ang <= 300
        S1(j) = 1;
        S2(j) = 0;
        S3(j) = 0;
    elseif ang <= 360-alpha
        S1(j) = 0;
        S2(j) = 0;
        S3(j) = 1;
    else
        S1(j) = 1;
        S2(j) = 0;
        S3(j) = 0;
    end
end

Parameters

%-----------
RN = 0.0167;
LN = 0.0628;
RS = 0.0095;
LS = 0.927;
C = 0.755;
tm = 0;

Run the simulation

Spp = [cos(wf*tm) cos(wf*tm-2*pi/3) cos(wf*tm+2*pi/3);cos(wf*tm-2*pi/3) ...
  cos(wf*tm+2*pi/3) cos(wf*tm);cos(wf*tm+2*pi/3) cos(wf*tm) cos(wf*tm-2*pi/3)];
delta = 0;
iassto(1) = 0;
ibssto(1) = sin(2*pi/3);
icssto(1) = sin(4*pi/3);
iabcn = Spp*[iassto(1);ibssto(1);icssto(1)];
iansto(1) = iabcn(1);
ibnsto(1) = iabcn(2);
icnsto(1) = iabcn(3);
tsto(1) = 0;

for i = 1:prdnos
    for j = 1:sbintnos
        tsto(round((i-1)*sbintnos+j+1)) = dT*((i-1)*sbintnos+j);
        tm = tsto(round((i-1)*sbintnos+j+1));
        indx = round((i-1)*sbintnos+j+1);
        Spp = [cos(wf*tm) cos(wf*tm-2*pi/3) cos(wf*tm+2*pi/3); ...
          cos(wf*tm-2*pi/3) cos(wf*tm+2*pi/3) cos(wf*tm);cos(wf*tm+2*pi/3) ...
          cos(wf*tm) cos(wf*tm-2*pi/3)];
        Sp = [cos(wf*tm)*S1(j) cos(wf*tm-2*pi/3)*S2(j) ...
          cos(wf*tm+2*pi/3)*S3(j);cos(wf*tm-2*pi/3)*S2(j) ...
          cos(wf*tm+2*pi/3)*S3(j) cos(wf*tm)*S1(j); ...
          cos(wf*tm+2*pi/3)*S3(j) cos(wf*tm)*S1(j) cos(wf*tm-2*pi/3)*S2(j)];
        S = [S1(j) S2(j) S3(j);S2(j) S3(j) S1(j);S3(j) S1(j) S2(j)];
        iassto(indx) = sin(ws*tm);
        ibssto(indx) = sin(ws*tm - 2*pi/3);
        icssto(indx) = sin(ws*tm + 2*pi/3);
        K = (2/3)*[cos(wf*tm) cos(wf*tm-2*pi/3) cos(wf*tm+2*pi/3); ...
          sin(wf*tm) sin(wf*tm-2*pi/3) sin(wf*tm+2*pi/3);0.5 0.5 0.5];
        iabcn = S*[iassto(indx);ibssto(indx);icssto(indx)];
        iansto(indx) = iabcn(1);
        ibnsto(indx) = iabcn(2);
        icnsto(indx) = iabcn(3);
    end
end

iansto2 = [];
tsto2 = [];
for i = 1:100:length(iansto)-2000
    iansto2 = [iansto2;mean(iansto(i:i+2000))];
    tsto2 = [tsto2;tsto(i)];
end

IpCurr = [iassto ibssto icssto];
OpCurr = [iansto ibnsto icnsto];

alpha = 0.0005;
OpCurraF = zeros(simlen,1);
OpCurraF(1) = iansto(1);
for i = 2:length(iansto)
    OpCurraF(i) =  alpha*iansto(i) + (1-alpha)*OpCurraF(i-1);
end

OpCurr = [OpCurraF ibnsto icnsto];

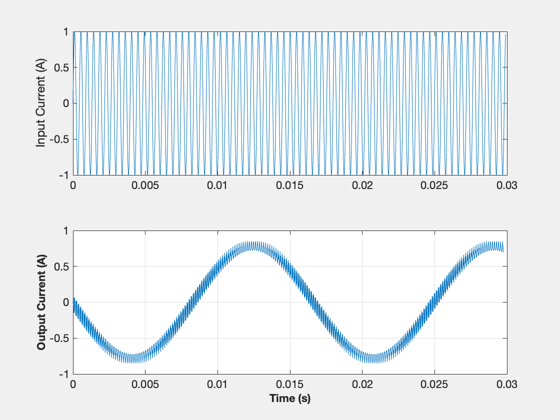

Plot results

NewFig('Matrix Converter Currents');
subplot(2,1,1),plot(tsto,iassto)

ylabel('Input Current (A)')
subplot(2,1,2),plot(tsto2,iansto2)
grid on
XLabelS('Time (s)')
YLabelS('Output Current (A)')


% PSS internal file version information
%--------------------------------------

% $Id: e6cb1a248c1ee3b9fb7c1f8354f057cb69a9ce37 $

Published with MATLAB® R2022b
