Generate a noisy star image in a loop.

Generates noise from a CCD model and an image from Gaussian based point spread functions. The demo has three centroids. Generates 100 images and saves them to a movie called CCDMovie.avi ------------------------------------------------------------------------- See also DetectorModel, FocalPlaneImage, VM2PSFPeak, ImagerPSF, RHSGaussianPSF, SaveMovie

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 2013-2014 Princeton Satellite Systems, Inc.
%   All Rights Reserved.
%--------------------------------------------------------------------------

Constants

%-----------
mmToM           = 0.001;

Noise model

%-------------
e = DetectorModel( 'struct' );
e.m             = 64;
e.n             = 64;
e.a             = 25;
e.f             = 50;
e.pixel         = 20;
e.qE            = 0.33;
e.tau           = 0.2;
e.fpn           = 115;
e.ndr           = 75;
e.dark          = 190;
e.alpha         = 0.018;
e.kTC           = 0;
e.kAD           = 14.8e-6;
e.gain          = 1;
e.bits          = 12;
e.vS            = 2 - 0.85;
e.eta           = 1;
e.kappa         = 1;
e.r             = 1;
e.centroid      = false;
e.lambda        = 500;

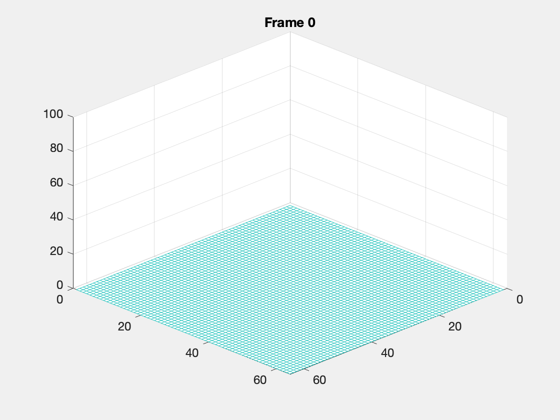

Initialize the noise and display

%----------------------------------
DetectorModel(   'initialize', e );
FocalPlaneImage( 'initialize', e );
z = get(gca,'zlim');
set(gca,'zlim',[0 100]);

PSF model

%----------
d.n             = e.m;
d.m             = e.n;
d.xPixel        = e.pixel;
d.yPixel        = e.pixel;
d.rPSF          = [[3.5 11.5 26.5]*d.xPixel;[3.5 11.5 44.1]*d.yPixel];

vM              = [5 5.2 4.8];
pSFData.r       = [0;0];
pSFData.i       = 1;
pSFData.d.sigma	= 10;
xLim            = [-50,50];
d.iPSF          = VM2PSFPeak( vM, @RHSGaussianPSF, e.lambda, e.a, e.tau, pSFData, xLim, xLim );
d.funData.sigma	= 10;
d.funPSF        = @RHSGaussianPSF;

% Generate the centroid output
%-----------------------------
pI              = ImagerPSF( d );

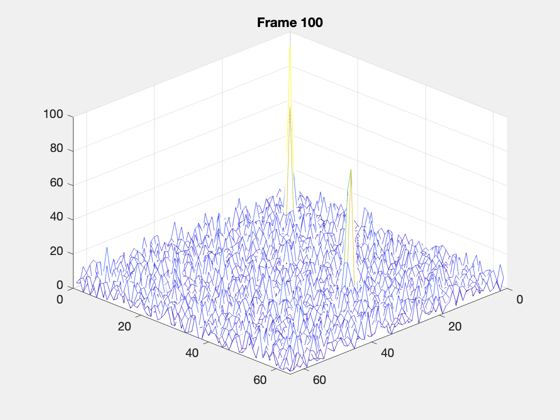

Animate

%---------
clear m;
for k = 1:100
	p = DetectorModel( 'update', e, pI );
	FocalPlaneImage( 'update', p, k );
  m(k) = getframe(gcf);
	pause(0.1)
end

SaveMovie( m, 'CCDMovie' )

%--------------------------------------

% $Id: f66d272bf59d9309ac34042467e776231877ef18 $
