Parameter study for defocused Airy point spread function

Find the parameters for defocusing the Airy and Gaussian PSFs. Uses a unit intensity for a centroid at [0,0]. The defocused Airy PSF requires the camera focal length and aperture and the wavelength of light. We specify a pixel width and draw it on the plots so we can see if we are defocusing enough.

See also RHSGaussianPSF, RHSAiryDefocusedPSF, RHSMoffatPSF

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 2014 Princeton Satellite Systems.
%   All Rights Reserved.
%--------------------------------------------------------------------------
%   Since 2016.1
%--------------------------------------------------------------------------

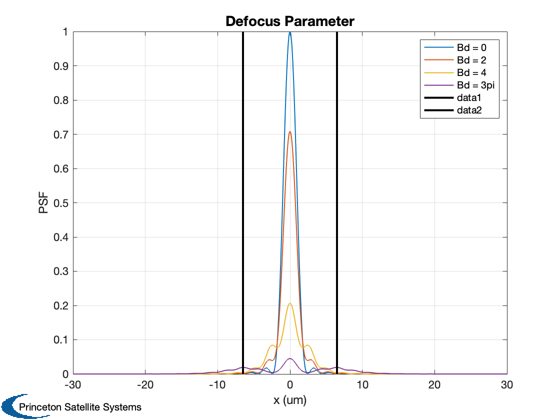

The defocused parameter

The aim is to spread a star's PSF over multiple pixels on the actual camera. Assume a pixel is 13 microns wide.

% Optical parameters in mm
%--------------------------
f = 50; % focal length
a = 15; % aperture

% Wavelength of light in nm
%--------------------------
lambda = 600;

% Pixel in um
%------------
wPixel = 13;

% Center of image
%----------------
r0 = [0;0];

% Defocused
%-----------
dD.d.lambda	= lambda;
dD.d.f      = f;
dD.d.a      = a;
dD.d.bD     = 0;
dD.r        = r0;
dD.i        = 1;

x           = linspace(-30,30,1000); % um
y           = zeros(1,length(x));
fD0         = RHSAiryDefocusedPSF(x,y,dD);

dD.d.bD     = 2;
fD2         = RHSAiryDefocusedPSF(x,y,dD);

dD.d.bD     = 4;
fD4         = RHSAiryDefocusedPSF(x,y,dD);

dD.d.bD     = 3*pi;
fD10        = RHSAiryDefocusedPSF(x,y,dD);
iA          = RHSAiryDefocusedPSF(r0(1),0,dD); % peak value

% Plot
%------
Plot2D(x,[fD0;fD2;fD4;fD10],'x (um)','PSF','Defocus Parameter','lin', [], [], [], [], 1 )
legend('Bd = 0','Bd = 2','Bd = 4','Bd = 3pi')
yA = axis;
hold on
plot([wPixel wPixel]/2,[0 yA(4)],'k','linewidth',2)
plot(-[wPixel wPixel]/2,[0 yA(4)],'k','linewidth',2)

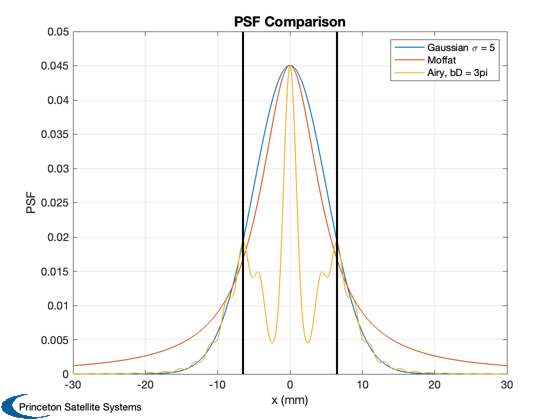

Compare defocused to simpler PSFs

% Gaussian
%----------
dG.d.sigma	= 5;      % um
dG.r        = r0;
dG.i        = iA;
fG          = RHSGaussianPSF(x,y,dG);

% Moffat
%-------
dM.d.rho  	= 5;      % um
dM.d.beta   = 1;      % um
dM.r        = r0;
dM.i        = iA;
fM          = RHSMoffatPSF(x,y,dM);

% Plot
%------
Plot2D(x,[fG;fM;fD10],'x (mm)','PSF','PSF Comparison','lin', [], [], [], [], 1 )
yA = axis;
hold on
plot([wPixel wPixel]/2,[0 yA(4)],'k','linewidth',2)
plot(-[wPixel wPixel]/2,[0 yA(4)],'k','linewidth',2)

legend('Gaussian \sigma = 5','Moffat','Airy, bD = 3pi')


%--------------------------------------

% $Id: 119fc15516d734ec332da0780f173c450a5b434e $
