Simulate an optimal approach and orbit insertion at Mars (fmincon)

Treat the problem as planar. Models a fixed mass. fmincon is used to find the optimal trajectory. This optimization is on the slow side and may take several hundred iterations. If the thrust isn't high enough for the time given, the acceleration will be maxed out - ones all the time - and there will be a large error. When the thrust is more than enough, there will be a coast period. The cost function will first increase until it plateaus and then taper off to the final solution.

Parameter space:

0. Mass/thrust of the spacecraft 1. how long a time is allocated for the insertion burn (fTime) 2. the number of points along the trajectory 3. number of optimization iterations, or tolerances

Example solutions: 3500 kg / 40 or 20 N / fTime = 3 - coast time in trajectory 3000 kg / 15 N / 3 Note: lower thrust may require less mass, more points

The cost, f(x), is the total acceleration required for the maneuver. The constraints, or Feasibility, are that the acceleration magnitude is less than the maximum and that the final state is achieved at the endpoint.

Example output: First-order Norm of Iter F-count f(x) Feasibility optimality step 271 56026 8.140240e+01 5.301e-12 8.410e-01 3.252e-03

------------------------------------------------------------------------
See also ApproachCost2DMag, ApproachConst2DIneq, Simulate2DApproach
------------------------------------------------------------------------
%--------------------------------------------------------------------------
%   Copyright (c) 2016 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------
%   Since 2017.1
%--------------------------------------------------------------------------

Watermark([1 1 1]); % for plot inversion

if( ~HasOptimizationToolbox )
  error('You need the MATLAB optimizaton toolbox to run this script.');
end

Problem parameters

Optimization parameters

maxIter = 500;
fTime = 5; % factor times the impulse time for executing burn
nPts  = 100; % 100 pts

% Spacecraft parameters
mass   = 2500; % fixed mass (kg)
thrust = 20;  % fixed thrust (N)

% Target orbit parameters
h  = 10000; % apogee
hC = 5000;  % perigee

Setup

Constants

rE    = Constant('equatorial radius mars');
mu    = Constant('mu mars');

aMax  = thrust*0.001/mass; % km/s2

% Calculate target orbit
[sma,ecc] = RPRA2AE(rE+hC,rE+h);
vEll      = VOrbit(rE+h,sma,mu);
rP        = rE + h; % r of passage

% Encounter velocity (incoming trajectory)
vEsc	= VEscape( rP, mu );
vEnc  = 1.06*vEsc; % magic number: 1.06
vInf  = sqrt(vEnc.^2 - vEsc^2); % v-infinity % units???
% Change from encounter velocity to apogee - instantaneous burn
dV    = vEnc-vEll;
% Approx time to do delta-V at our fixed thrust level
impT  = dV*mass*1000/thrust;
dVTime = fTime*impT;

% Generate incoming trajectory orbital elements (hyperbola) via Kepler
smaP  = -mu/vInf^2;
eccP  = 1 - rP/smaP;
f     = 0.76*acos(-1/eccP);
m     = Nu2M(eccP,f);
m     = linspace(-m,m);
r     = zeros(3,100);
for j = 1:length(m)
	el      = [smaP 0 0 0 eccP m(j)];
	r(:,j)	= El2RV( el, [], mu );
end

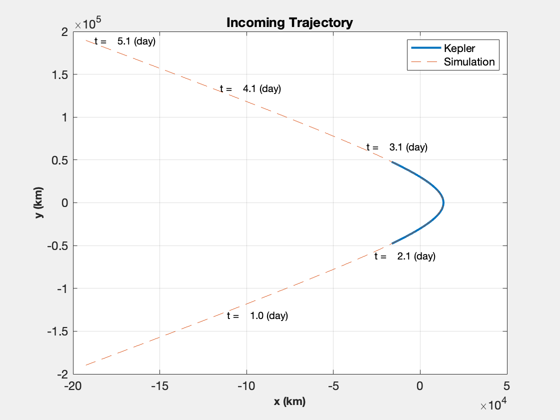

% Plot the flyby (if no delta-V is applied)
NewFig('Mars flyby')
plot(r(1,:),r(2,:),'linewidth',2);
hold on
grid on
XLabelS('x (km)');
YLabelS('y (km)');
title('Incoming Trajectory')

% Compute the true anomaly to reach target anomaly in dVTime time
fTarget = 0.0;
f0   = TrueAnomalyStartHyperbola(smaP,eccP,dVTime,fTarget,mu);
t    = linspace(0,TimeOfFlightHyperbola(smaP,eccP,-f0,f0,mu),nPts);
%nPts = length(t);

m0     = Nu2M( eccP,f0 );
[r, v] = El2RV( [smaP 0 0 0 eccP m0], [], mu );

% Convert velocity to planar coordinates (u,v)
uR	= Unit(r);
uT	= Cross([0;0;1],uR);
u   = Dot(uR,v);
v   = Dot(uT,v);

% Initial condition
x0 = [Mag(r);u;v;atan2(r(2),r(1))];

% Verify the simulation for zero acceleration
acc    = zeros(1,length(t)); % acceleration
phi    = zeros(1,length(t)); % thrust angle
d.mu   = mu;
d.aMax = aMax;
xZ     = Simulate2DApproach( t, x0, phi, acc, d );

plot(xZ(1,:),xZ(2,:),'--');
m     = nPts/5;
j     = [1:m:nPts nPts];
[tS,~,tU] = TimeLabl(t);
for k = 2:length(j)
  i = j(k);
  s = sprintf('   t = %6.1f (%s)',tS(i),tU);
  text(xZ(1,i),xZ(2,i),s);
end
legend('Kepler','Simulation')
drawnow
       2622.2

       3038.2

       3405.6

Set up the powered orbit insertion optimization

The goal is to achieve the insertion orbit at the end of the burn. The cost is the total acceleration.

% Target condition: elliptical orbital velocity at rP
xF = [rP;0;vEll];

% Step at which you should be at xF
nF = length(t)/2;

opts	= optimset( 'Display','iter-detailed',...
                  'maxiter',maxIter,...
                  'algorithm','interior-point',...
                  'TolFun',1e-2,...
                  'TolCon',0.1,...
                  'TolX',1e-4,...
                  'PlotFcns',{@optimplotx,@optimplotfval},...
                  'MaxFunEvals',300000);

costFun   = @(u) ApproachCost2DMag(u);
constFun	= @(u) ApproachConst2DIneq(u,d,t(1:nF),x0,xF);

% Lower and upper bounds
oN = ones(1,nF);
lB = [-1*oN; -1*oN];
uB = [oN; oN];

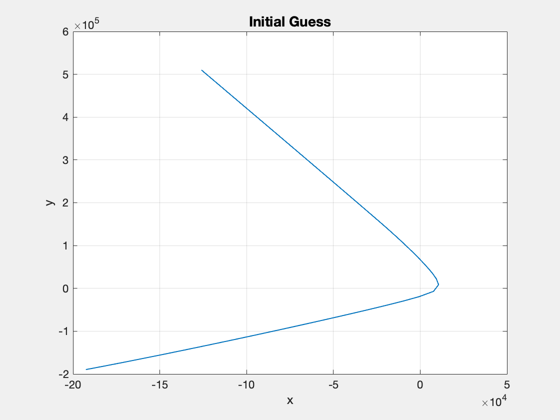

% Initial solution: start with negative radial thrust to avoid a swingby of
% the planet, which confuses the simulation.
acc0  = oN;
u0    = [-oN;0*oN]; % [radial;tangential]
%Plot2D(1:nF,u0,'Points',{'Radial','Tangential'},'Initial Acceleration')
phi0 = atan2(u0(1,:),u0(2,:));
traj0 = Simulate2DApproach( t, x0, [phi0 0*oN], [acc0 0*oN], d );
Plot2D(traj0(1,:),traj0(2,:),'x','y','Initial Guess')
drawnow
       3767.3

       2183.8

       1583.1

       2331.3

Run fmincon to calculate the optimal decision variables

tic
[u,fval,eflag,output] = fmincon(costFun,u0,[],[],[],[],lB,uB,constFun,opts);
toc
u(abs(u)<1e-3) = 0;

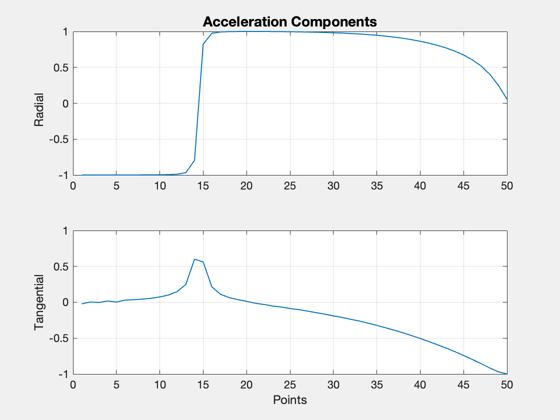

Plot2D(1:nF,u,'Points',{'Radial','Tangential'},'Acceleration Components')
Initial point X0 is not between bounds LB and UB;
FMINCON shifted X0 to strictly satisfy the bounds.

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
    0     101    5.000000e+00    1.292e+00    9.846e-01
    1     205    4.169370e+00    1.236e+00    1.303e+00    4.729e-01
    2     311    3.599654e+00    6.233e-01    7.618e-01    4.766e-01
    3     414    5.387138e+00    5.997e-01    1.320e+00    4.712e-01
    4     518    6.200861e+00    5.878e-01    1.692e+00    2.390e-01
    5     622    7.097613e+00    5.764e-01    2.000e+00    2.302e-01
    6     726    8.188928e+00    5.636e-01    2.183e+00    2.626e-01
    7     830    9.137551e+00    5.526e-01    2.301e+00    2.299e-01
    8     934    1.007246e+01    5.424e-01    2.452e+00    2.173e-01
    9    1038    1.113151e+01    5.313e-01    2.583e+00    2.345e-01
   10    1142    1.238498e+01    5.191e-01    2.817e+00    2.583e-01
   11    1246    1.371949e+01    5.066e-01    2.658e+00    2.721e-01
   12    1350    1.516538e+01    4.937e-01    3.011e+00    2.905e-01
   13    1454    1.630929e+01    4.829e-01    3.193e+00    2.477e-01
   14    1558    1.723449e+01    4.743e-01    3.233e+00    2.048e-01
   15    1662    1.805249e+01    4.670e-01    3.127e+00    1.728e-01
   16    1766    1.889414e+01    4.592e-01    3.403e+00    1.846e-01
   17    1870    1.977402e+01    4.514e-01    3.630e+00    2.010e-01
   18    1974    2.086238e+01    4.419e-01    3.629e+00    2.719e-01
   19    2078    2.206784e+01    4.318e-01    3.961e+00    2.994e-01
   20    2182    2.316142e+01    4.227e-01    4.073e+00    2.808e-01
   21    2287    2.468477e+01    3.294e-01    7.886e-01    5.813e-01
   22    2391    2.556669e+01    3.248e-01    9.498e-01    1.689e-01
   23    2495    2.614306e+01    3.220e-01    1.279e+00    1.183e-01
   24    2599    2.655537e+01    3.199e-01    1.244e+00    9.224e-02
   25    2703    2.702717e+01    3.175e-01    1.474e+00    1.095e-01
   26    2807    2.779076e+01    3.142e-01    1.517e+00    1.716e-01
   27    2912    2.834568e+01    3.182e-01    7.559e-01    4.114e-01
   28    3016    2.902657e+01    3.156e-01    9.882e-01    1.533e-01
   29    3120    2.962010e+01    3.135e-01    1.109e+00    1.371e-01
   30    3224    3.009797e+01    3.119e-01    1.242e+00    1.088e-01

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
   31    3328    3.055402e+01    3.105e-01    1.406e+00    1.050e-01
   32    3433    3.105960e+01    2.913e-01    7.910e-01    2.146e-01
   33    3537    3.156317e+01    2.897e-01    9.302e-01    1.104e-01
   34    3641    3.200356e+01    2.884e-01    9.540e-01    9.749e-02
   35    3745    3.244882e+01    2.872e-01    1.043e+00    1.083e-01
   36    3849    3.283595e+01    2.862e-01    1.163e+00    8.521e-02
   37    3953    3.324563e+01    2.851e-01    1.324e+00    8.992e-02
   38    4058    3.363128e+01    3.038e-01    8.813e-01    3.219e-01
   39    4162    3.399076e+01    3.028e-01    8.984e-01    7.383e-02
   40    4266    3.444281e+01    3.017e-01    1.013e+00    1.040e-01
   41    4371    3.520418e+01    2.872e-01    7.406e-01    2.683e-01
   42    4475    3.557364e+01    2.863e-01    8.365e-01    8.004e-02
   43    4580    3.620645e+01    3.002e-01    7.582e-01    2.664e-01
   44    4684    3.655509e+01    2.994e-01    8.269e-01    7.912e-02
   45    4789    3.725583e+01    2.864e-01    7.567e-01    2.216e-01
   46    4895    3.805658e+01    2.975e-01    7.789e-01    2.394e-01
   47    4999    3.838550e+01    2.969e-01    8.378e-01    7.266e-02
   48    5104    3.908163e+01    2.851e-01    7.739e-01    2.362e-01
   49    5208    3.936452e+01    2.846e-01    7.271e-01    6.101e-02
   50    5312    3.963138e+01    2.842e-01    6.997e-01    5.904e-02
   51    5418    4.005015e+01    2.944e-01    7.701e-01    1.563e-01
   52    5521    4.031362e+01    2.940e-01    6.953e-01    6.253e-02
   53    5625    4.047545e+01    2.937e-01    7.129e-01    4.101e-02
   54    5730    4.086597e+01    2.840e-01    8.554e-01    1.947e-01
   55    5833    4.101501e+01    2.838e-01    8.226e-01    3.504e-02
   56    5937    4.118731e+01    2.835e-01    7.703e-01    4.138e-02
   57    6042    4.171742e+01    2.922e-01    8.826e-01    2.047e-01
   58    6145    4.186797e+01    2.920e-01    8.393e-01    3.678e-02
   59    6249    4.202151e+01    2.918e-01    8.154e-01    3.956e-02
   60    6354    4.232754e+01    2.821e-01    9.507e-01    2.011e-01

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
   61    6457    4.245868e+01    2.820e-01    9.052e-01    3.113e-02
   62    6562    4.286873e+01    2.901e-01    9.612e-01    1.891e-01
   63    6665    4.311288e+01    2.897e-01    8.937e-01    5.707e-02
   64    6771    4.333621e+01    2.800e-01    1.010e+00    1.698e-01
   65    6874    4.355343e+01    2.797e-01    9.547e-01    5.188e-02
   66    6978    4.376084e+01    2.794e-01    8.802e-01    5.426e-02
   67    7084    4.409008e+01    2.870e-01    1.020e+00    1.565e-01
   68    7187    4.426288e+01    2.867e-01    9.603e-01    4.156e-02
   69    7293    4.444768e+01    2.784e-01    1.013e+00    1.318e-01
   70    7396    4.461240e+01    2.782e-01    9.715e-01    4.039e-02
   71    7500    4.472217e+01    2.780e-01    9.309e-01    3.071e-02
   72    7605    4.508963e+01    2.846e-01    9.639e-01    1.882e-01
   73    7708    4.523815e+01    2.844e-01    9.046e-01    3.716e-02
   74    7812    4.534259e+01    2.843e-01    8.489e-01    3.089e-02
   75    7918    4.543415e+01    2.773e-01    9.509e-01    1.518e-01
   76    8021    4.553639e+01    2.771e-01    9.311e-01    3.174e-02
   77    8125    4.562493e+01    2.770e-01    8.986e-01    2.919e-02
   78    8231    4.580450e+01    2.832e-01    8.005e-01    1.304e-01
   79    8334    4.588620e+01    2.831e-01    7.592e-01    2.784e-02
   80    8440    4.597451e+01    2.769e-01    1.002e+00    1.237e-01
   81    8543    4.605234e+01    2.768e-01    9.667e-01    2.647e-02
   82    8649    4.623830e+01    2.823e-01    8.651e-01    1.195e-01
   83    8752    4.632137e+01    2.822e-01    8.179e-01    2.986e-02
   84    8856    4.639222e+01    2.821e-01    7.752e-01    2.661e-02
   85    8960    4.647131e+01    2.820e-01    7.354e-01    2.686e-02
   86    9066    4.656649e+01    2.765e-01    1.163e+00    1.195e-01
   87    9169    4.664428e+01    2.764e-01    1.133e+00    2.768e-02
   88    9273    4.670999e+01    2.763e-01    1.094e+00    2.253e-02
   89    9379    4.688972e+01    2.813e-01    7.578e-01    1.154e-01
   90    9482    4.695984e+01    2.812e-01    7.278e-01    2.663e-02

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
   91    9586    4.703438e+01    2.812e-01    7.272e-01    2.979e-02
   92    9692    4.714224e+01    2.765e-01    1.210e+00    1.130e-01
   93    9795    4.721144e+01    2.764e-01    1.184e+00    2.495e-02
   94    9901    4.737571e+01    2.808e-01    9.307e-01    1.088e-01
   95   10004    4.744068e+01    2.807e-01    8.940e-01    2.490e-02
   96   10110    4.753627e+01    2.768e-01    1.053e+00    1.096e-01
   97   10213    4.760610e+01    2.768e-01    1.016e+00    2.800e-02
   98   10319    4.773497e+01    2.805e-01    9.903e-01    1.084e-01
   99   10422    4.779807e+01    2.805e-01    9.535e-01    2.403e-02
  100   10527    4.796479e+01    2.769e-01    1.942e+00    1.536e-01
  101   10629    4.802265e+01    2.768e-01    1.907e+00    1.680e-02
  102   10732    4.812941e+01    2.767e-01    1.869e+00    5.327e-02
  103   10839    4.818834e+01    2.802e-01    1.943e+00    1.568e-01
  104   10941    4.824722e+01    2.802e-01    1.904e+00    2.437e-02
  105   11047    4.831766e+01    2.764e-01    1.699e+00    1.311e-01
  106   11151    4.835629e+01    2.763e-01    1.683e+00    1.838e-02
  107   11256    4.845137e+01    2.797e-01    1.575e+00    1.305e-01
  108   11358    4.849595e+01    2.797e-01    1.542e+00    2.032e-02
  109   11464    4.855150e+01    2.767e-01    6.811e-01    1.215e-01
  110   11568    4.858286e+01    2.767e-01    6.653e-01    1.436e-02
  111   11673    4.869351e+01    2.795e-01    1.817e+00    1.245e-01
  112   11776    4.872239e+01    2.795e-01    1.802e+00    1.315e-02
  113   11880    4.875436e+01    2.795e-01    1.780e+00    1.579e-02
  114   11985    4.884617e+01    2.771e-01    2.574e+00    1.241e-01
  115   12089    4.887485e+01    2.770e-01    2.552e+00    1.291e-02
  116   12194    4.898081e+01    2.796e-01    1.904e+00    1.091e-01
  117   12298    4.900906e+01    2.796e-01    1.892e+00    1.355e-02
  118   12403    4.908777e+01    2.773e-01    2.252e+00    1.206e-01
  119   12507    4.911404e+01    2.773e-01    2.241e+00    1.225e-02
  120   12612    4.920324e+01    2.795e-01    6.225e-01    1.009e-01

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
  121   12718    4.927401e+01    2.776e-01    2.350e+00    9.762e-02
  122   12822    4.930373e+01    2.776e-01    2.336e+00    1.580e-02
  123   12927    4.937512e+01    2.794e-01    1.397e+00    9.611e-02
  124   13033    4.942881e+01    2.780e-01    1.545e+00    8.707e-02
  125   13135    4.951048e+01    2.780e-01    1.513e+00    3.644e-02
  126   13239    4.955465e+01    2.779e-01    1.498e+00    2.582e-02
  127   13342    4.964179e+01    2.779e-01    1.471e+00    5.809e-02
  128   13446    4.967843e+01    2.778e-01    1.435e+00    3.722e-02
  129   13550    4.971483e+01    2.778e-01    1.415e+00    3.214e-02
  130   13656    4.974259e+01    2.795e-01    1.169e+00    1.013e-01
  131   13758    4.977542e+01    2.795e-01    1.160e+00    1.391e-02
  132   13861    4.980215e+01    2.794e-01    1.150e+00    3.705e-02
  133   13965    4.981857e+01    2.794e-01    1.144e+00    3.102e-02
  134   14069    4.982550e+01    2.794e-01    1.139e+00    1.927e-02
  135   14173    4.983438e+01    2.794e-01    1.133e+00    2.158e-02
  136   14277    4.985222e+01    2.794e-01    1.129e+00    2.951e-02
  137   14381    4.986823e+01    2.794e-01    1.123e+00    2.267e-02
  138   14485    4.987773e+01    2.794e-01    1.119e+00    1.750e-02
  139   14589    4.988938e+01    2.793e-01    1.118e+00    2.577e-02
  140   14692    4.990850e+01    2.793e-01    1.114e+00    2.362e-02
  141   14795    4.992874e+01    2.793e-01    1.113e+00    3.428e-02
  142   14897    4.994836e+01    2.793e-01    1.109e+00    3.711e-02
  143   15001    4.995235e+01    2.793e-01    1.108e+00    1.661e-02
  144   15107    4.995107e+01    2.777e-01    1.345e+00    7.956e-02
  145   15209    4.995379e+01    2.777e-01    1.345e+00    1.984e-03
  146   15311    4.995803e+01    2.777e-01    1.345e+00    1.244e-02
  147   15414    4.996408e+01    2.777e-01    1.344e+00    2.982e-02
  148   15517    4.996749e+01    2.777e-01    1.341e+00    1.632e-02
  149   15619    4.997520e+01    2.777e-01    1.342e+00    2.587e-02
  150   15723    4.997867e+01    2.777e-01    1.342e+00    1.993e-02

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
  151   15829    4.997998e+01    2.790e-01    1.040e+00    8.622e-02
  152   15930    4.998240e+01    2.790e-01    1.040e+00    1.209e-02
  153   16032    4.998411e+01    2.790e-01    1.040e+00    2.932e-02
  154   16134    4.998470e+01    2.790e-01    1.040e+00    6.098e-03
  155   16236    4.998593e+01    2.790e-01    1.040e+00    7.144e-03
  156   16340    4.998716e+01    2.790e-01    1.040e+00    1.247e-02
  157   16443    4.999003e+01    2.790e-01    1.040e+00    1.106e-02
  158   16547    4.999144e+01    2.790e-01    1.040e+00    1.186e-02
  159   16651    4.999320e+01    2.790e-01    1.040e+00    1.018e-02
  160   16753    4.999936e+01    2.790e-01    1.039e+00    1.824e-02
  161   16856    5.000141e+01    2.790e-01    1.039e+00    1.273e-02
  162   16960    5.000235e+01    2.790e-01    1.039e+00    6.591e-03
  163   17062    5.000718e+01    2.790e-01    1.040e+00    1.756e-02
  164   17171    5.000480e+01    2.786e-01    1.043e+00    4.860e-02
  165   17272    5.000089e+01    2.786e-01    1.002e+00    4.584e-02
  166   17373    5.000121e+01    2.786e-01    1.002e+00    1.345e-02
  167   17475    5.000162e+01    2.786e-01    1.002e+00    1.115e-02
  168   17577    5.000241e+01    2.786e-01    1.002e+00    2.082e-02
  169   17680    4.999969e+01    2.787e-01    1.002e+00    7.869e-02
  170   17783    4.999811e+01    2.786e-01    1.002e+00    5.407e-02
  171   17884    4.999869e+01    2.786e-01    1.002e+00    3.640e-02
  172   17985    4.999843e+01    2.786e-01    1.002e+00    7.859e-02
  173   18087    4.999901e+01    2.786e-01    1.002e+00    3.687e-02
  174   18189    4.999791e+01    2.786e-01    1.002e+00    3.242e-02
  175   18291    4.999825e+01    2.786e-01    1.002e+00    2.373e-02
  176   18392    4.999648e+01    2.787e-01    1.002e+00    4.916e-02
  177   18494    4.999686e+01    2.786e-01    1.002e+00    2.397e-02
  178   18596    4.999758e+01    2.786e-01    1.002e+00    1.139e-03
  179   18699    4.999912e+01    2.786e-01    1.002e+00    9.940e-03
  180   18803    4.999952e+01    2.786e-01    1.002e+00    7.650e-03

                                            First-order      Norm of
 Iter F-count            f(x)  Feasibility   optimality         step
  181   18905    5.000266e+01    2.786e-01    1.002e+00    1.815e-02
  182   19009    5.000342e+01    2.786e-01    1.002e+00    1.295e-02
  183   19112    5.000498e+01    2.786e-01    1.002e+00    1.368e-02
  184   19215    5.000587e+01    2.786e-01    1.002e+00    1.233e-02
  185   19320    5.000516e+01    2.787e-01    1.002e+00    1.762e-02
  186   19421    5.000551e+01    2.787e-01    1.002e+00    2.687e-02
  187   19523    5.000569e+01    2.787e-01    1.002e+00    1.793e-02
  188   19625    5.000574e+01    2.787e-01    1.002e+00    7.851e-03
  189   19726    5.000541e+01    2.787e-01    1.002e+00    8.843e-03
  190   19829    5.000545e+01    2.787e-01    9.678e-01    7.818e-03
  191   19931    5.000572e+01    2.787e-01    9.679e-01    2.200e-04
  192   20033    5.001317e+01    2.787e-01    9.681e-01    9.436e-03
  193   20141    5.001255e+01    2.787e-01    9.680e-01    3.163e-02
  194   20243    5.001282e+01    2.787e-01    9.665e-01    2.460e-02
  195   20345    5.001289e+01    2.787e-01    9.673e-01    1.364e-02
  196   20446    5.001240e+01    2.787e-01    9.668e-01    1.440e-02
  197   20548    5.001249e+01    2.787e-01    9.673e-01    1.479e-02
  198   20649    5.001196e+01    2.787e-01    9.666e-01    1.868e-02
  199   20751    5.001204e+01    2.787e-01    9.668e-01    1.420e-02
  200   20853    5.001205e+01    2.787e-01    9.671e-01    6.782e-03
  201   20954    5.001215e+01    2.787e-01    9.677e-01    1.535e-02
  202   21055    5.001173e+01    2.787e-01    9.675e-01    1.629e-02
  203   21157    5.001180e+01    2.787e-01    9.670e-01    1.307e-02
  204   21259    5.001181e+01    2.787e-01    9.505e-01    6.874e-03
  205   21361    5.001167e+01    2.787e-01    9.503e-01    8.761e-03
  206   21463    5.001178e+01    2.787e-01    9.503e-01    1.962e-04

Optimization stopped because the relative changes in all elements of x are
less than options.StepTolerance = 1.000000e-04, but the relative maximum constraint
violation, 2.157077e-01, exceeds options.ConstraintTolerance = 1.000000e-01.


Consider enabling the interior point method feasibility mode.

Elapsed time is 11.490461 seconds.

Process the results

phi = [unwrap(atan2(u(1,:),u(2,:))) zeros(1,nPts-nF)];
acc = [Mag(u) zeros(1,nPts-nF)];
[aError, xError] = ApproachConst2DIneq( u, d, t(1:nF), x0, [rP;0;vEll]);
x    = Simulate2DApproach( t, x0, phi, acc, d );
[aAch, eAch] = RV2AE( [x(1:2,end);0], [x(3:4,end);0], d.mu );
disp('Target Orbit [sma ecc]:')
disp([sma ecc])
disp('Orbit Achieved:')
disp([aAch eAch])

% Final value of constraints
DispWithTitle(xError,'Constraint Error')
dVAch = sum(Mag(u))*(t(2)-t(1))*aMax*1000;
DispWithTitle(dV*1000,'Impulsive Delta-V (m/s)')
DispWithTitle(dVAch,'Low Thrust Delta-V (m/s)')
DispWithTitle(dVTime/3600,'Approach Duration (hrs)')

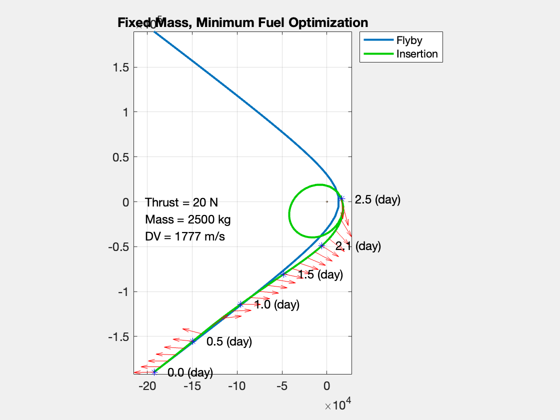

% Plot the orbit insertion trajectory
NewFig('Trajectory')
plot(xZ(1,:),xZ(2,:),'linewidth',2);
hold on;
plot(x(1,:),x(2,:),'color',[0 0.8 0],'linewidth',2);
m     = nF/5;
j     = [1:m:nF nF];
for k = 1:length(j)
  i = j(k);
  s = sprintf('   %4.1f (%s)',tS(i),tU);
  plot(x(1,i),x(2,i),'b*');
	text(x(1,i),x(2,i),s,'fontsize',12);
end
pP = Map('Pluto');
hP = PlotPlanet([0;0;0],pP.radius,pP,true);
hold on
kQ = [1:2:nF nF];
qs = quiver(x(1,kQ),x(2,kQ),u(1,kQ),u(2,kQ),0.4,'r');
axis equal
legend('Flyby', 'Insertion','location','BestOutside');
yA = axis;
dY = yA(4)-yA(3);
dX = yA(2)-yA(1);
text(yA(1)+0.05*dX,0,sprintf('Thrust = %d N',thrust),'fontsize',12);
text(yA(1)+0.05*dX,-0.05*dY,sprintf('Mass = %d kg',mass),'fontsize',12);
text(yA(1)+0.05*dX,-0.1*dY,sprintf('DV = %3.0f m/s',dVAch),'fontsize',12);
title('Fixed Mass, Minimum Fuel Optimization')

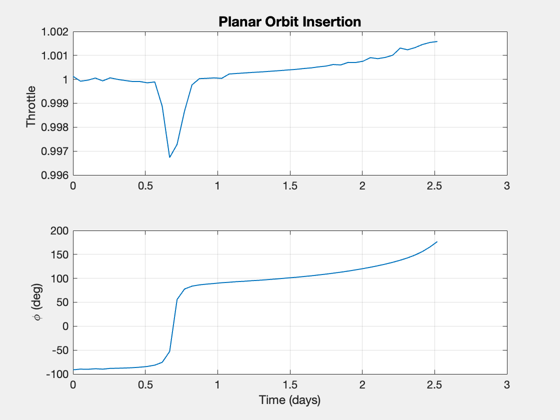

% Plot the thrust angle and magnitude
[tP,tL] = TimeLabl(t);
Plot2D(tP(1:nF),[acc(1:nF);phi(1:nF)*180/pi],tL,{'Throttle' '\phi (deg)'},'Planar Orbit Insertion');

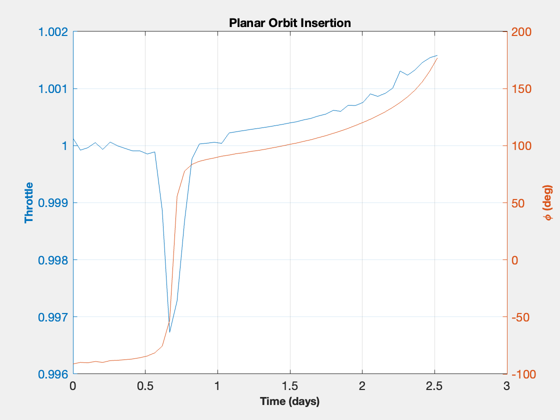

PlotDoubleYAxis( tP(1:nF), acc(1:nF), phi(1:nF)*180/pi, tL,...
  'Throttle' , '\phi (deg)', 'Planar Orbit Insertion' );

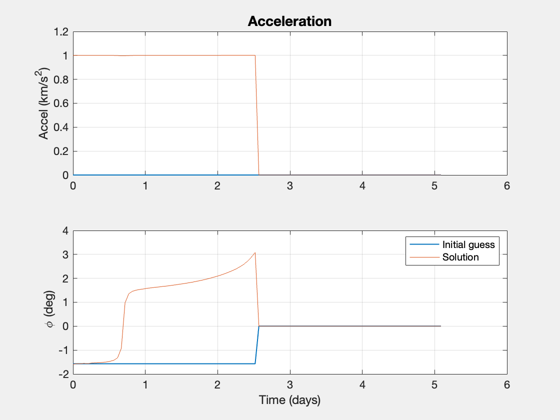

Plot2D(tP,[acc0*aMax zeros(1,nF);phi0  zeros(1,nF)],tL,{'Accel (km/s^2)' '\phi (deg)'},'Acceleration');
subplot(2,1,1)
hold on
plot(tP,acc)
subplot(2,1,2)
hold on
plot(tP,phi)
legend('Initial guess','Solution')

if 0
  filename = input('Please enter a filename for the run: ','s');
  save(['PlutoInsertion-' filename])
end


%--------------------------------------
% $Date$
% $Id: dedfe7560df33fb3aac7385f56609d9f8110f0f8 $
Target Orbit [sma ecc]:
        10897      0.22942

Orbit Achieved:
        31778      0.49886

Constraint Error
      0.18943
     0.013538
      0.27871

Impulsive Delta-V (m/s)
       1110.8

Low Thrust Delta-V (m/s)
       1776.6

Approach Duration (hrs)
       192.84
