Hohmann transfer to Mars.

This is the most fuel efficient way to get to Mars. Assumes Mars and Earth are coplanar and have circular orbits. Creates a plot showing the transfer orbit. ------------------------------------------------------------------------- See also DVHoh, Constant, Period -------------------------------------------------------------------------

%--------------------------------------------------------------------------
%   Copyright (c) 2013 Princeton Satellite Systems, Inc.
%   All Rights Reserved.
%   Since version 2014.1
%--------------------------------------------------------------------------

% Compute the mission Delta-V and time of flight
%-----------------------------------------------
aU                      = Constant('au');
muSun                   = Constant('mu sun');
v1                      = sqrt(muSun/aU);
[dV, dV1, dV2, eT, aT]	= DVHoh( aU, 1.5*aU, v1, muSun );
tOF                     = Period(aT,muSun)/2;

% Transfer orbital elements
%--------------------------
t                       = linspace(0,tOF);
el                      = [aT 0 0 0 eT 0];
rT                      = RVFromKepler( el, t, muSun );

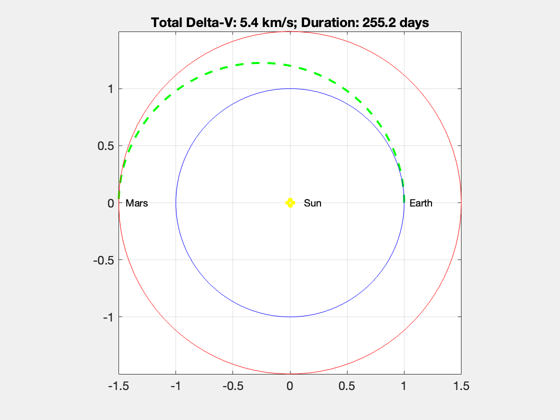

NewFig('Hohmann Transfer')
plot(rT(1,:)/aU,rT(2,:)/aU,'--g','linewidth',2);
hold on
a = linspace(0,2*pi);
plot(cos(a),sin(a),'b'); % Earth
plot(1.5*cos(a),1.5*sin(a),'r'); % Mars
plot(0,0,'oy','linewidth',4)
text(0,0,'     Sun')
text(1.02,0,' Earth')
text(-1.49,0,'  Mars')
title(sprintf('Total Delta-V: %.2g km/s; Duration: %.1f days',dV,tOF/86400))

grid on
axis image


%--------------------------------------
% PSS internal file version information
%--------------------------------------

% $Id: f91847ed7225ebd60fad9a39f47e00814cfccd42 $

Published with MATLAB® R2024a
