Low-thrust Pluto trajectory
disp('Low-thrust Mars demo using Simplex')
d.method = 'downhill simplex';
d.repeat = 1;
lbFToKg = Constant('lb force to kg');
aU = Constant('au');
muSun = Constant('mu sun');
secInDay = 86400;
m0 = 10000*lbFToKg;
[name,a] = Planets('rad',4);
aF = aU*a(1);
v0 = VOrbit(aU,aU,muSun);
vF = VOrbit(aF,aF,muSun);
d.d.mu = Constant('mu sun');
d.d.mDot = 6.7727e-5;
d.d.thrust = 0.002;
d.d.rhsFun = @FLowThrust2D;
d.d.plotFun = @Plot2DTrajectory;
d.d.stateTol = 1e-12;
d.d.funTol = 1e-12;
d.d.nIts = 10000;
d.d.costFun = @CostLowThrust2D;
d.d.lambda0 = [0;0.5;2]*1e5;
d.d.x0 = [aU;0;v0;m0];
d.d.xF = [aF;0;vF];
d.d.rF = d.d.xF(1);
d.d.data.absTol = 1e-10;
d.d.data.relTol = 2.5e-8;
d.d.data.maxStep = 0.1;
d.d.tEnd = 300*secInDay;
d.d.errorScale = [1; 3e6; 1e7; 1e-2];
[lambda,xF,tF] = TrajectoryOptimization( d );
disp('Initial costate guess:')
disp(d.d.lambda0)
disp('Costate returned by Simplex:')
disp(lambda{1})

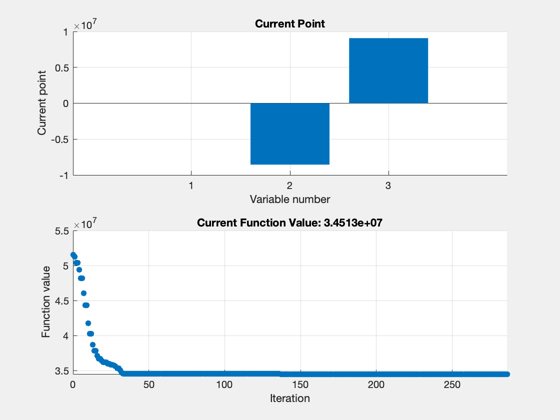

Low-thrust Mars demo using Simplex
Case 1: Method: downhill simplex
Iteration Func-count f(x) Procedure
0 1 5.15502e+07
1 4 5.12213e+07 initial simplex
2 6 5.03997e+07 expand
3 7 5.03997e+07 reflect
4 9 4.94165e+07 expand
5 11 4.81477e+07 expand
6 12 4.81477e+07 reflect
7 14 4.60287e+07 expand
8 16 4.43102e+07 expand
9 17 4.43102e+07 reflect
10 19 4.1764e+07 expand
11 21 4.02932e+07 expand
12 22 4.02932e+07 reflect
13 24 3.86808e+07 expand
14 26 3.78078e+07 expand
15 27 3.78078e+07 reflect
16 29 3.71304e+07 expand
17 31 3.66683e+07 expand
18 32 3.66683e+07 reflect
19 34 3.64195e+07 expand
20 36 3.61857e+07 expand
21 37 3.61857e+07 reflect
22 38 3.61857e+07 reflect
23 40 3.59954e+07 expand
24 41 3.59954e+07 reflect
25 43 3.58524e+07 expand
26 44 3.58524e+07 reflect
27 46 3.57379e+07 expand
28 48 3.56071e+07 expand
29 50 3.52983e+07 expand
30 51 3.52983e+07 reflect
31 53 3.50756e+07 expand
32 55 3.46915e+07 expand
33 57 3.45757e+07 reflect
34 58 3.45757e+07 reflect
35 60 3.45215e+07 contract outside
36 62 3.45159e+07 reflect
37 64 3.45159e+07 contract inside
38 65 3.45159e+07 reflect
39 67 3.45159e+07 contract inside
40 72 3.45159e+07 shrink
41 74 3.45159e+07 contract outside
42 76 3.45145e+07 reflect
43 78 3.45145e+07 contract inside
44 80 3.45145e+07 contract outside
45 81 3.45145e+07 reflect
46 86 3.45145e+07 shrink
47 87 3.45145e+07 reflect
48 89 3.45145e+07 contract inside
49 90 3.45145e+07 reflect
50 92 3.45145e+07 contract inside
51 94 3.45144e+07 reflect
52 96 3.45144e+07 contract inside
53 101 3.45144e+07 shrink
54 102 3.45144e+07 reflect
55 104 3.45134e+07 contract inside
56 106 3.45131e+07 reflect
57 108 3.45131e+07 contract inside
58 110 3.45131e+07 contract inside
59 112 3.45131e+07 contract inside
60 114 3.45131e+07 contract inside
61 116 3.45131e+07 contract inside
62 118 3.45131e+07 contract inside
63 120 3.45131e+07 contract inside
64 121 3.45131e+07 reflect
65 123 3.45131e+07 contract inside
66 125 3.45131e+07 contract inside
67 127 3.45131e+07 contract inside
68 129 3.45131e+07 contract inside
69 131 3.45131e+07 contract inside
70 133 3.45131e+07 contract inside
71 135 3.45131e+07 contract inside
72 137 3.45131e+07 contract inside
73 139 3.45131e+07 contract inside
74 141 3.45131e+07 contract inside
75 143 3.45131e+07 contract inside
76 145 3.45131e+07 contract inside
77 147 3.45131e+07 contract inside
78 149 3.45131e+07 reflect
79 151 3.45131e+07 contract inside
80 153 3.45131e+07 contract inside
81 155 3.45131e+07 contract inside
82 157 3.45131e+07 contract inside
83 158 3.45131e+07 reflect
84 160 3.45131e+07 contract inside
85 162 3.45131e+07 contract inside
86 164 3.45131e+07 contract inside
87 166 3.45131e+07 contract inside
88 168 3.45131e+07 contract inside
89 170 3.45131e+07 contract inside
90 172 3.45131e+07 contract inside
91 174 3.45131e+07 contract inside
92 176 3.45131e+07 contract inside
93 177 3.45131e+07 reflect
94 179 3.45131e+07 contract inside
95 181 3.45131e+07 expand
96 183 3.45131e+07 contract inside
97 185 3.45131e+07 contract inside
98 186 3.45131e+07 reflect
99 188 3.45131e+07 expand
100 190 3.45131e+07 reflect
101 192 3.45131e+07 contract inside
102 194 3.45131e+07 expand
103 196 3.45131e+07 contract inside
104 197 3.45131e+07 reflect
105 199 3.45131e+07 expand
106 201 3.45131e+07 expand
107 203 3.45131e+07 expand
108 205 3.45131e+07 expand
109 207 3.45131e+07 expand
110 209 3.45131e+07 expand
111 211 3.45131e+07 expand
112 213 3.45131e+07 expand
113 215 3.45131e+07 expand
114 217 3.45131e+07 expand
115 219 3.4513e+07 expand
116 220 3.4513e+07 reflect
117 222 3.4513e+07 contract outside
118 224 3.4513e+07 contract inside
119 225 3.4513e+07 reflect
120 227 3.4513e+07 contract inside
121 229 3.4513e+07 contract inside
122 231 3.4513e+07 contract inside
123 233 3.4513e+07 contract inside
124 235 3.4513e+07 reflect
125 237 3.4513e+07 expand
126 238 3.4513e+07 reflect
127 240 3.4513e+07 expand
128 241 3.4513e+07 reflect
129 242 3.4513e+07 reflect
130 244 3.4513e+07 expand
131 246 3.4513e+07 expand
132 247 3.4513e+07 reflect
133 249 3.4513e+07 expand
134 250 3.4513e+07 reflect
135 252 3.4513e+07 expand
136 254 3.4513e+07 reflect
137 256 3.4513e+07 expand
138 258 3.4513e+07 contract inside
139 260 3.4513e+07 contract inside
140 262 3.4513e+07 reflect
141 264 3.4513e+07 contract inside
142 266 3.4513e+07 contract inside
143 268 3.4513e+07 contract inside
144 270 3.4513e+07 contract inside
145 272 3.4513e+07 contract inside
146 274 3.4513e+07 contract inside
147 276 3.4513e+07 contract inside
148 278 3.4513e+07 contract inside
149 280 3.4513e+07 contract inside
150 282 3.4513e+07 contract inside
151 284 3.4513e+07 contract inside
152 286 3.4513e+07 contract inside
153 288 3.4513e+07 contract inside
154 290 3.4513e+07 contract inside
155 292 3.4513e+07 reflect
156 294 3.4513e+07 contract inside
157 296 3.4513e+07 contract inside
158 298 3.4513e+07 contract inside
159 300 3.4513e+07 contract inside
160 302 3.4513e+07 contract inside
161 304 3.4513e+07 contract inside
162 306 3.4513e+07 contract inside
163 308 3.4513e+07 reflect
164 310 3.4513e+07 contract inside
165 312 3.4513e+07 contract inside
166 314 3.4513e+07 contract inside
167 316 3.4513e+07 reflect
168 317 3.4513e+07 reflect
169 319 3.4513e+07 contract inside
170 321 3.4513e+07 contract inside
171 323 3.4513e+07 contract inside
172 325 3.4513e+07 contract inside
173 326 3.4513e+07 reflect
174 328 3.4513e+07 contract inside
175 330 3.4513e+07 contract outside
176 332 3.4513e+07 expand
177 334 3.4513e+07 contract inside
178 336 3.4513e+07 contract inside
179 338 3.4513e+07 reflect
180 340 3.4513e+07 contract inside
181 342 3.4513e+07 reflect
182 344 3.4513e+07 contract inside
183 346 3.4513e+07 contract inside
184 348 3.4513e+07 expand
185 350 3.4513e+07 contract inside
186 352 3.4513e+07 contract outside
187 353 3.4513e+07 reflect
188 355 3.4513e+07 reflect
189 357 3.4513e+07 reflect
190 359 3.4513e+07 contract inside
191 360 3.4513e+07 reflect
192 362 3.4513e+07 contract inside
193 367 3.4513e+07 shrink
194 372 3.4513e+07 shrink
195 377 3.4513e+07 shrink
196 378 3.4513e+07 reflect
197 383 3.4513e+07 shrink
198 385 3.4513e+07 contract outside
199 390 3.4513e+07 shrink
200 391 3.4513e+07 reflect
201 392 3.4513e+07 reflect
202 397 3.4513e+07 shrink
203 402 3.4513e+07 shrink
204 404 3.4513e+07 contract outside
205 406 3.4513e+07 contract inside
206 408 3.4513e+07 reflect
207 413 3.4513e+07 shrink
208 414 3.4513e+07 reflect
209 419 3.4513e+07 shrink
210 420 3.4513e+07 reflect
211 421 3.4513e+07 reflect
212 423 3.4513e+07 reflect
213 428 3.4513e+07 shrink
214 433 3.4513e+07 shrink
215 434 3.4513e+07 reflect
216 435 3.4513e+07 reflect
217 440 3.4513e+07 shrink
218 441 3.4513e+07 reflect
219 446 3.4513e+07 shrink
220 451 3.4513e+07 shrink
221 452 3.4513e+07 reflect
222 453 3.4513e+07 reflect
223 454 3.4513e+07 reflect
224 456 3.4513e+07 contract inside
225 461 3.4513e+07 shrink
226 462 3.4513e+07 reflect
227 463 3.4513e+07 reflect
228 465 3.4513e+07 contract inside
229 470 3.4513e+07 shrink
230 471 3.4513e+07 reflect
231 472 3.4513e+07 reflect
232 473 3.4513e+07 reflect
233 478 3.4513e+07 shrink
234 480 3.4513e+07 reflect
235 485 3.4513e+07 shrink
236 490 3.4513e+07 shrink
237 495 3.4513e+07 shrink
238 496 3.4513e+07 reflect
239 501 3.4513e+07 shrink
240 503 3.4513e+07 contract inside
241 504 3.4513e+07 reflect
242 509 3.4513e+07 shrink
243 510 3.4513e+07 reflect
244 511 3.4513e+07 reflect
245 512 3.4513e+07 reflect
246 513 3.4513e+07 reflect
247 515 3.4513e+07 contract inside
248 520 3.4513e+07 shrink
249 522 3.4513e+07 contract outside
250 527 3.4513e+07 shrink
251 532 3.4513e+07 shrink
252 534 3.4513e+07 contract inside
253 535 3.4513e+07 reflect
254 537 3.4513e+07 contract inside
255 539 3.4513e+07 contract inside
256 544 3.4513e+07 shrink
257 549 3.4513e+07 shrink
258 550 3.4513e+07 reflect
259 551 3.4513e+07 reflect
260 552 3.4513e+07 reflect
261 553 3.4513e+07 reflect
262 558 3.4513e+07 shrink
263 559 3.4513e+07 reflect
264 560 3.4513e+07 reflect
265 565 3.4513e+07 shrink
266 566 3.4513e+07 reflect
267 571 3.4513e+07 shrink
268 573 3.4513e+07 contract inside
269 578 3.4513e+07 shrink
270 580 3.4513e+07 contract inside
271 585 3.4513e+07 shrink
272 586 3.4513e+07 reflect
273 587 3.4513e+07 reflect
274 589 3.4513e+07 contract inside
275 590 3.4513e+07 reflect
276 595 3.4513e+07 shrink
277 596 3.4513e+07 reflect
278 597 3.4513e+07 reflect
279 602 3.4513e+07 shrink
280 603 3.4513e+07 reflect
281 608 3.4513e+07 shrink
282 609 3.4513e+07 reflect
283 614 3.4513e+07 shrink
284 615 3.4513e+07 reflect
285 617 3.4513e+07 contract inside
286 619 3.4513e+07 contract outside
Optimization terminated:
the current x satisfies the termination criteria using OPTIONS.TolX of 1.000000e-12
and F(X) satisfies the convergence criteria using OPTIONS.TolFun of 1.000000e-12

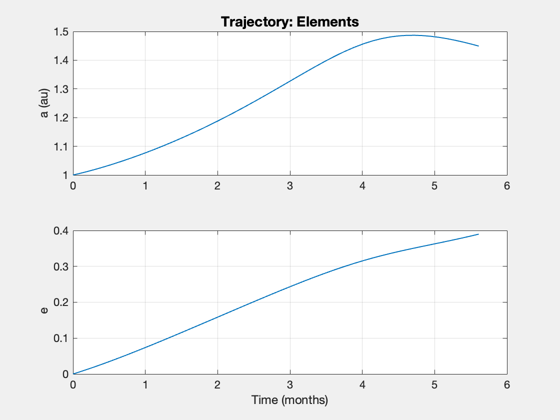

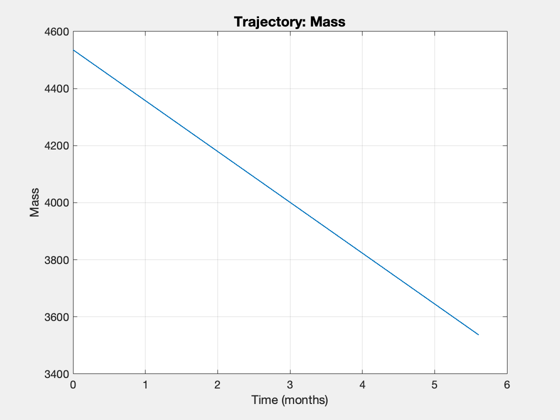

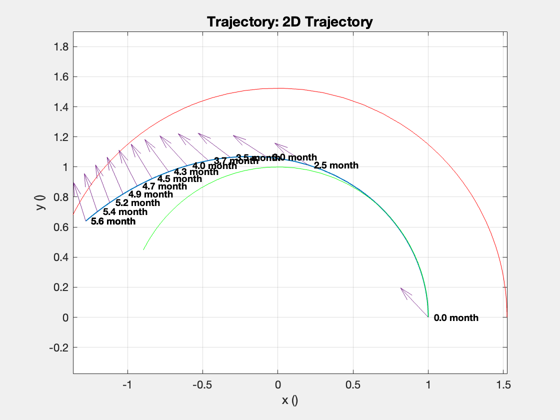

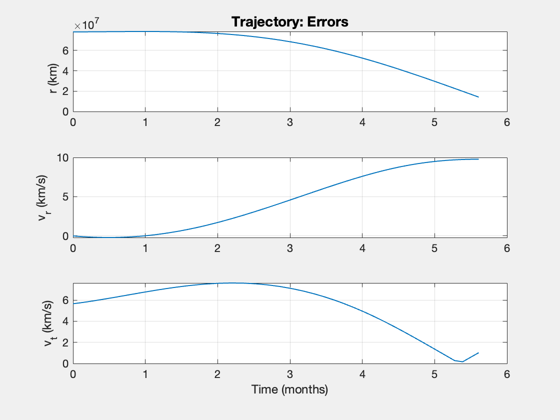

Radial position error = 14162705.8210 (km)
Radial velocity error = 9.7753 (km/s)
Tangential velocity error = 1.0224 (km/s)
Time of minimum error = 5.6089 month
Initial costate guess:
0
50000
200000
Costate returned by Simplex:
0.40819
-8.5576e+06
9.0827e+06
