Load and plot the NewHorizons Pluto flyby

----- Ephemeris / WWW_USER Tue Aug 9 09:48:29 2016 Pasadena, USA / Horizons ----- Target body name: New Horizons (spacecraft) (-98) {source: NH} Center body name: Pluto (999) {source: NH} Center-site name: BODY CENTER ----- Start time : A.D. 2015-Jul-14 00:00:00.0000 TDB Stop time : A.D. 2015-Jul-15 00:00:00.0000 TDB Step-size : 30 minutes ----- Center geodetic : 0.00000000,0.00000000,0.0000000 {E-lon(deg),Lat(deg),Alt(km)} Center cylindric: 0.00000000,0.00000000,0.0000000 {E-lon(deg),Dxy(km),Dz(km)} Center radii : 1195.0 x 1195.0 x 1195.0 km {Equator, meridian, pole} Output units : KM-S Output format : 01 Reference frame : ICRF/J2000.0 Output type : GEOMETRIC cartesian states Coordinate systm: Ecliptic and Mean Equinox of Reference Epoch ----- JDTDB, , X, Y, Z, -----

%---------------------------------------------------------------------------
%   Copyright (c) 2017 Princeton Satellite Systems, Inc.
%   All rights reserved.
%---------------------------------------------------------------------------

fid = fopen('NewHorizonsFlyby.txt');
C = textscan(fid,'%f%s%f%f%f','delimiter',',');
x = C{3};
y = C{4};
z = C{5};

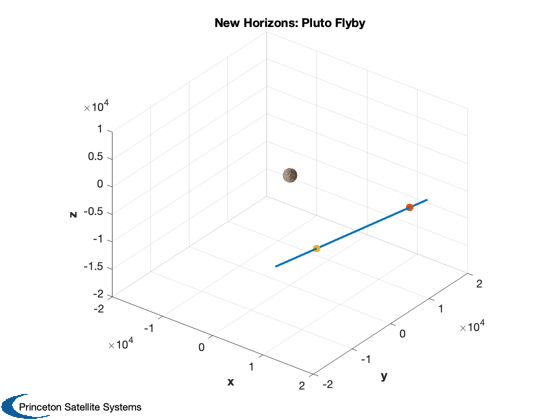

Plot3D([x y z]');
hSurf = PlotPlanet( [0;0;0], 1151, Map('Pluto'), true );
axis(2*[-10000 10000 -10000 10000 -10000 5000])
title('New Horizons: Pluto Flyby')

hold on
x1 = [1.203859177986807E+04,  1.533008966500017E+04, -8.644218675305214E+03]';
p1 = plot3(x1(1),x1(2),x1(3),'.');
x2 = [1.232125186599508E+04, -9.170144830096331E+03, -4.808393631578325E+03]';
p2 = plot3(x2(1),x2(2),x2(3),'.');
set(p2,'markersize',20)
set(p1,'markersize',20)

% *******************************************************************************
% Coordinate system description:
%
%   Ecliptic and Mean Equinox of Reference Epoch
%
%     Reference epoch: J2000.0
%     xy-plane: plane of the Earth's orbit at the reference epoch
%     x-axis  : out along ascending node of instantaneous plane of the Earth's
%               orbit and the Earth's mean equator at the reference epoch
%     z-axis  : perpendicular to the xy-plane in the directional (+ or -) sense
%               of Earth's north pole at the reference epoch.
%
% Symbol meaning
%
%     JDTDB    Epoch Julian Date, Barycentric Dynamical Time
%       X      x-component of position vector (km)
%       Y      y-component of position vector (km)
%       Z      z-component of position vector (km)
%
% Geometric states/elements have no aberration corrections applied.
%
%  Computations by ...
%      Solar System Dynamics Group, Horizons On-Line Ephemeris System
%      4800 Oak Grove Drive, Jet Propulsion Laboratory
%      Pasadena, CA  91109   USA
%      Information: http://ssd.jpl.nasa.gov/
%      Connect    : telnet://ssd.jpl.nasa.gov:6775  (via browser)
%                   telnet ssd.jpl.nasa.gov 6775    (via command-line)
%      Author     : Jon.Giorgini@jpl.nasa.gov
% *******************************************************************************


%--------------------------------------

% $Id: b74061ef0853674fcc825666e0e92e802af1561a $

Published with MATLAB® R2024a
