Demo of an optimal flyby mission to the Solar Gravitational Lens

------------------------------------------------------------------------
See also: FlybyOptimalImpulse, FlybyReport, SimulateFlyby,
Straight2DStructure, DisplayLatexTable
------------------------------------------------------------------------

%--------------------------------------------------------------------------
%  Copyright (c) 2018 Princeton Satellite Systems, Inc.
%  All rights reserved.
%  2024.1 Update to use FlybyOptimalImpulse, no longer requires fmincon
%--------------------------------------------------------------------------

payload             = 300;  % kg
nAU                 = 600;  % number of AU
nYear               = 20;
fTank               = 0.03; % tank fraction

aU                  = Constant('au');
year                = 365*86400;

d                   = Straight2DStructure;
d.f                 = fTank;
d.mP                = payload;
d.dF                = nAU*aU;
d.eta               = 0.4;     % power to thrust efficiency
d.sigma             = 1*1000;  % W/kg
d.tF                = nYear*year;

uEOpt = FlybyOptimalImpulse( d );
d.uE  = uEOpt;
[s,data] = FlybyReport(payload,d);
DisplayLatexTable( s )

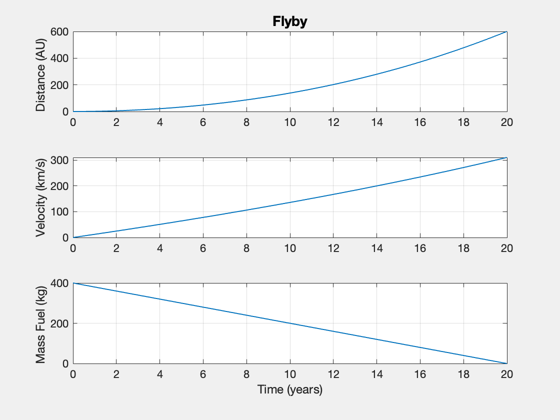

SimulateFlyby( data )


%--------------------------------------

% $Id: 94334d67ddb647c6d27ef058745c09eb9c972a53 $

---- Flyby -----------           --    --
     ---- INPUTS -----           --    --
        Final position       600.00    AU
            Final time        19.99    yr
          Mass payload       300.00    kg
     ---- ENGINE -----           --    --
      Exhaust Velocity       620.82  km/s
        Specific power      1000.00 kW/kg
            Efficiency         0.40
    ---- OUTPUTS -----           --    --
 Payload Mass Fraction         0.29 mP/m0
Payload Power Fraction         0.98 kg/kW
        Final velocity       310.36  km/s
                  Fuel       401.10    kg
            Mass Total      1019.51    kg
           Mass Engine       306.38    kg
                 Power         0.31    MW
                Thrust         0.39     N
Final position simulation       599.97 Distance (AU)
Final velocity simulation       310.36 km/s
Final time     simulation        19.99 year
