Space Station Attitude Control

Attitude control with thrusters an reaction wheels with magnetic momentum unloading.

The simulation uses properties generated by ManufacturingSpaceStationCAD.

This file loads SpaceStationProps.mat. It creates output in the file SpaceStationData.txt ------------------------------------------------------------------------ See also RHSSpaceStation, SpaceStationControl, SpaceStationDragDisturbance, PlotOrbit, El2RV, BDipole, Figui, TimeHistory, Date2JD, RK4 ------------------------------------------------------------------------

Contents

%--------------------------------------------------------------------------
%   Copyright (c) 2025 Princeton Satellite Systems, Inc.
%   All rights reserved.
%--------------------------------------------------------------------------

Controls

aCSOn = true;        % apply the ACS
useThruster = false; % use thrusters for ACS (otherwise, wheels)
mUOn = true;         % momentum unloading

Initialization

jD0 = Date2JD([2029 6 1]);

% Earth's radius
rE   = 6378.165;

% Simulation timing
tEnd = 8000.0; % sec
dT   = 1.0; % sec

% Spacecraft altitude
h    = 350.0; % km

% Orbit
el    = [rE+h 28.573469*pi/180 pi 0 0 0];
[r,v] = El2RV(el);

% CAD Model data - without the attached orbiter
dCAD = load('SpaceStationProps.mat');

Initialize the dynamics

d           = RHSSpaceStation;
d.inr       = dCAD.mass.inertia;
d.invInr    = inv(d.inr);
d.uThruster = -dCAD.uThruster;  % reverse plume direction
d.rThruster = dCAD.rThruster;
d.cM        = dCAD.mass.cM;
d.mass      = dCAD.mass.mass;

% Wheel inertia based on Honeywell HR 16
% RWA is Reaction Wheel Assembly
omegaSpec = 6000*pi/30;
d.inrRWA  = (75/omegaSpec)*[1;1;1;1];

% Reaction wheel pyramid about pitch
c         = cos(pi/4);
d.uRWA    = [c -c 0  0;...
             c  c c  c;...
             0  0 c -c];

% Drag disturbances
d.dist        = dCAD.dSurf;
d.dist.jD0    = jD0;
d.dist.cM     = dCAD.mass.cM;
d.dist.cD     = 2.7;

Initialize the controller

dACS             = SpaceStationControl('data structure');
dACS.inr         = dCAD.mass.inertia; % kg-m^2
dACS.dT          = dT;
dACS.dTMU        = 20*dT; % Momentum unloading time step
dACS.uRWA        = d.uRWA;
dACS.inrRWA      = d.inrRWA;
dACS.aCSOn       = aCSOn;
dACS.useThruster = useThruster;
dACS.mUOn        = mUOn;
dACS.uThruster   = -dCAD.uThruster; % reverse plume direction
dACS.rThruster   = dCAD.rThruster;
dACS.cM          = dCAD.mass.cM;

dACS             = SpaceStationControl('initialize',dACS);

Simulation

% State vector: [position;velocity;quaternion;body rate;rwa rate]
qS = QUnit(QLVLH(r,v)+[0;0.01;0;0]);
x  = [r;v;qS;0;0;0;10;10;10;10];
n  = ceil(tEnd/dT);
xP = zeros(37,n);

t = (0:n-1)*dT;

% This creates a data file for use in other applications
fileID = fopen('SpaceStationData.txt','wt');

TimeDisplay( 'initialize', 'Space Station ACS Simulation', n );
for k = 1:n

  % Environment
  b           = BDipole(x(1:3),jD0+t(k)/86400); % ECI frame
  dACS.b      = b; % if measured, would have noise
  d.b         = b; % truth

  % Control system
  dACS        = SpaceStationControl('update',dACS,x,t(k));
  d.torqueRWA = dACS.torqueRWA;
  d.mDipole   = dACS.m;
  d.fThruster = dACS.fThruster;

  % Adjust the quaternion so the one term is always positive for plotting
  q = x(7:10);
  if( q(1) < 0 )
    q = -q;
  end

  % Get data for plotting
  [~,hECI,torqueD] = RHSSpaceStation(x,t(k),d);
  xP(:,k)     = [x(1:6);q;x(11:end);d.torqueRWA;...
                 dACS.dC.q_desired_state;b;dACS.m;hECI;torqueD];

  % Integrate the right hand side
  x = RK4(@RHSSpaceStation,x,dT,t(k),d);
  fprintf(fileID,'%8.1f %12.2e %12.2e %12.2e %12.2e %12.2e %12.2e %12.2e\n',t(k),q,r);

  TimeDisplay( 'update' );
end
TimeDisplay( 'close' );

% Close the data file
fclose(fileID);

Plotting

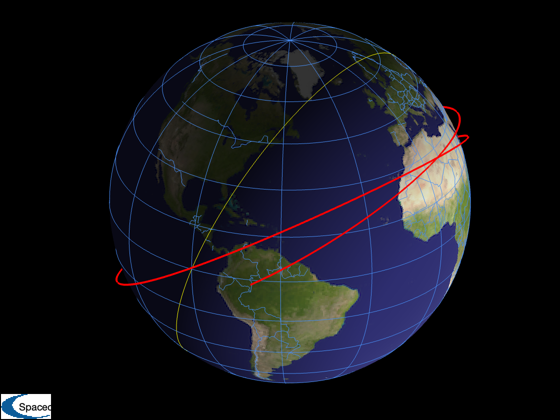

PlotOrbit( xP(1:3,:), t, jD0 );

yL     = {'r_x' 'r_y' 'r_z' ...
          'v_x' 'v_y' 'v_z' ...
          'q_s', 'q_x', 'q_y', 'q_z'...
          '\omega_x (rad/s)', '\omega_y  (rad/s)', '\omega_z  (rad/s)',...
          '\omega_1  (rad/s)', '\omega_2  (rad/s)', '\omega_3  (rad/s)', '\omega_4  (rad/s)',...
          'T_1 (Nm)', 'T_2 (Nm)', 'T_3 (Nm)', 'T_4 (Nm)' ...
          'q_{s_T}',  'q_{x_T}',  'q_{y_T}',  'q_{z_T}' ...
          'B_x (T) ' 'B_y (T)' 'B_z (T)' ...
          'M_x (ATM) ' 'M_y (ATM)' 'M_z (ATM)' ...
          'H_x (Nms) ' 'H_y (Nms)' 'H_z (Nms)' ...
          'T_{d_x} (Nm)' 'T_{d_y} (Nm)' 'T_{d_z} (Nm)' };

k      = [7:10 22:25];
kY     = 7:10;

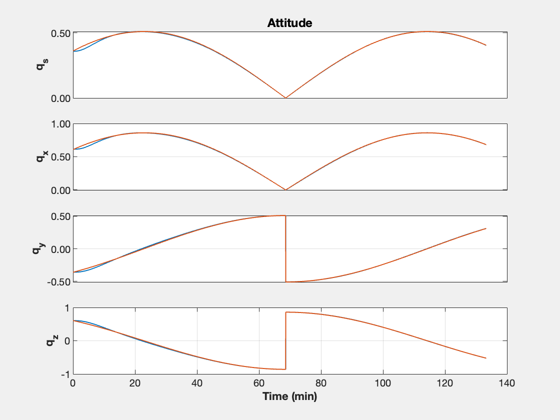

TimeHistory(t,xP(k,:),yL(kY),'Attitude',{[1 5] [2 6] [3 7] [4 8]});

k      = 11:13;

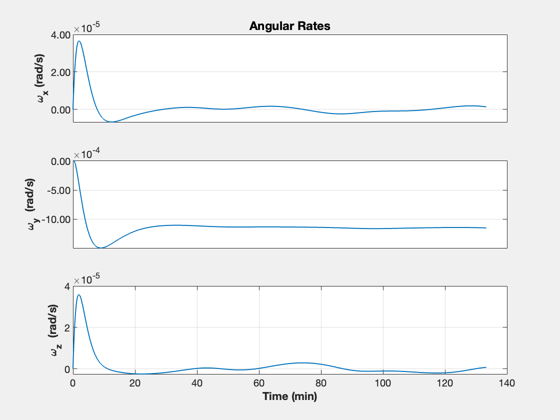

TimeHistory(t,xP(k,:),yL(k),'Angular Rates');

k      = 14:17;

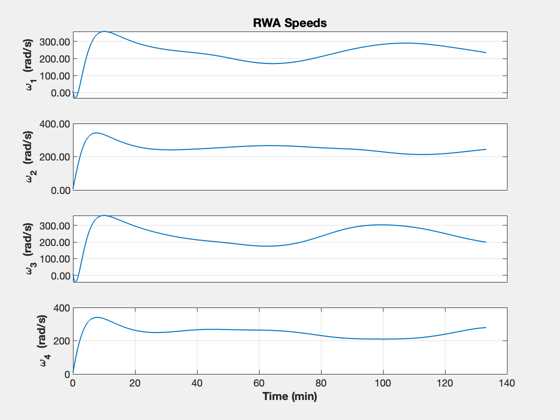

TimeHistory(t,xP(k,:),yL(k),'RWA Speeds');

k      = 18:21;

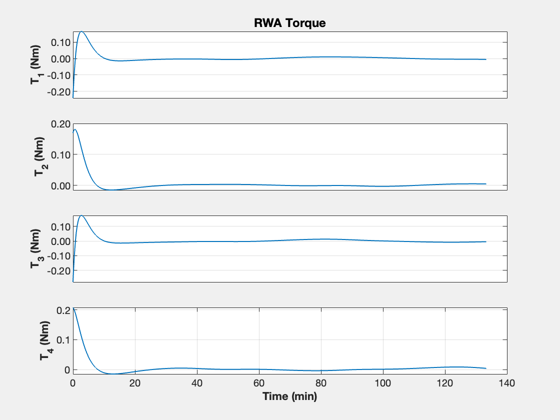

TimeHistory(t,xP(k,:),yL(k),'RWA Torque');

k      = 22:25;

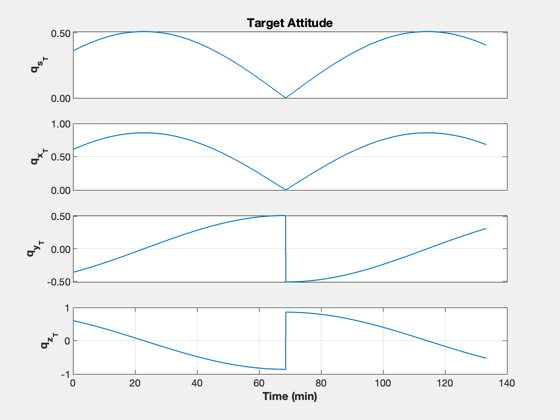

TimeHistory(t,xP(k,:),yL(k),'Target Attitude');

k      = 26:31;

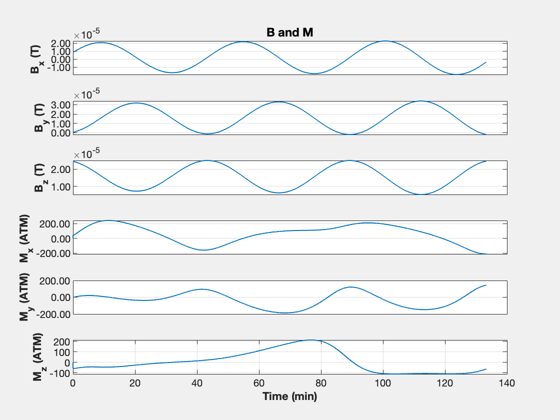

TimeHistory(t,xP(k,:),yL(k),'B and M');

k      = 32:37;

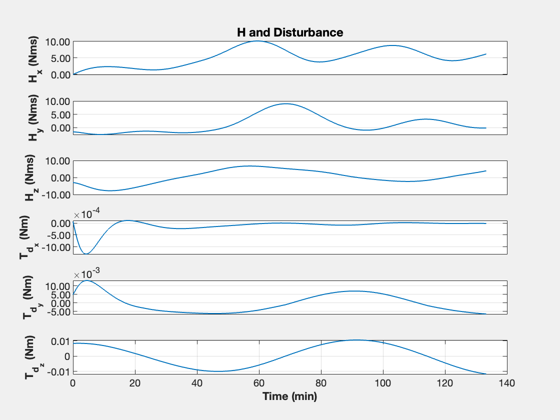

TimeHistory(t,xP(k,:),yL(k),'H and Disturbance');

Figui;


%--------------------------------------
