Test the magnetic field.

Compares the results of MagField and BDipole in a polar orbit.
------------------------------------------------------------------------
See also Plot2D, JD2000, PltOrbit, RVFromKepler, BDipole,
MagField
------------------------------------------------------------------------

Contents

%-------------------------------------------------------------------------------
%	  Copyright 1999-2003, 2007 Princeton Satellite Systems, Inc.
%   All rights reserved.
%-------------------------------------------------------------------------------

Number of sim steps

%--------------------
nSim        = 200;
dTSim       = 10;

Magnetic field

%---------------
magFieldData = load('MagData');

Generate the orbit

%-------------------
timeOrbit = (0:(nSim-1))*dTSim;

el = [a,i,W,w,e,M]

%-------------------
el     = [6718+352 pi/2 0 0 0 0];
[r, v] = RVFromKepler( el, timeOrbit );

jD     = JD2000;

Preallocate the array

%----------------------
bPlot  = zeros(3,nSim);
dPlot  = zeros(3,nSim);

Run the simulation

%------------------
for k = 1:nSim
  bPlot(:,k) =  MagField( r(:,k), jD, 2, magFieldData );
  dPlot(:,k) =   BDipole( r(:,k), jD );
  jD         = jD + dTSim/86400;
end

Plotting

%---------
xLbl = 'Time (sec)';

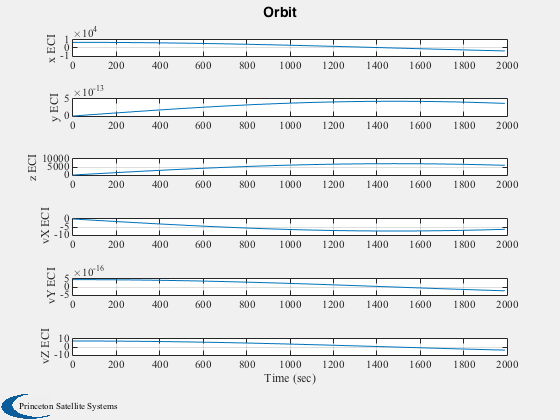

Plot2D( timeOrbit, [r;v], xLbl,['x ECI ';'y ECI ';'z ECI ';'vX ECI';'vY ECI';'vZ ECI'],'Orbit')

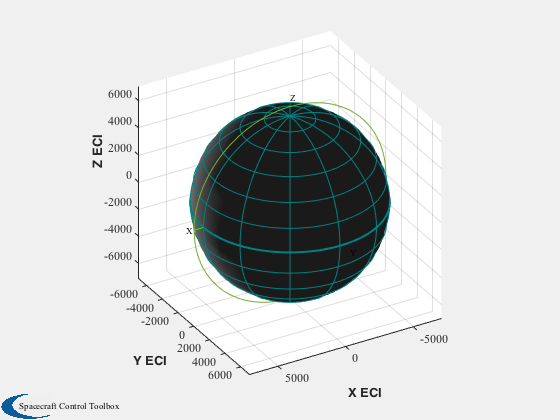

PltOrbit( el, jD )

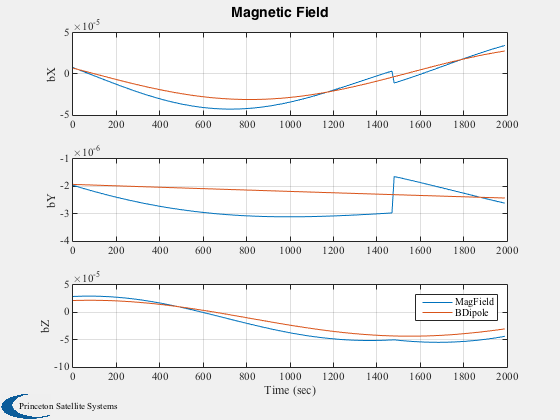

Plot2D( timeOrbit, [bPlot;dPlot], xLbl,['bX ';'bY ';'bZ '],'Magnetic Field','lin',['[1 4]';'[2 5]';'[3 6]'])
legend('MagField','BDipole')


%--------------------------------------
