Demonstrates static attitude determination.

Look at random locations in the sky to test the star identification
algorithms.
------------------------------------------------------------------------
See also Mat2Q, Q2Mat, QPose, QRand, SaveStructure,
ComputePixelMapScale, PinholeStarCamera, QFromU, StarIdentification,
LoadCatalog, StarDataGeneration
------------------------------------------------------------------------

Script options
Star identification options
Camera parameters
Default FK5 catalog
Adjust intensity for the camera gain
Loop

%------------------------------------------------------------------------
%   Copyright (c) 2001 Princeton Satellite Systems, Inc.
%   All rights reserved.
%------------------------------------------------------------------------
%   Since version 5.5
%------------------------------------------------------------------------

Script options

%----------------
nSim           = 10;
plotStars      = true;
noiseOn        = false;

Star identification options

%----------------------------
options                      = struct;
options.useAbsoluteIntensity = true;
options.intensityTolerance   = 0.001;
options.useTriad             = true;

Camera parameters

%-------------------
pixels            = 256;
degToRad          = pi/180;
fieldOfView       = 30*degToRad;
camera            = PinholeCameraStruct( pixels, fieldOfView );
camera.gain       = 1e9;
camera.sigmaXY    = 0.1; % pixels
camera.noise      = noiseOn;
angularResolution = 0.1*fieldOfView/pixels;

Default FK5 catalog

%---------------------
catalogName        = 'ADSimStaticCatalog.mat';

% Create the catalog if it does not exist
% vM 4.2 will give 2 polar stars
%----------------------------------------
if( isempty(which(catalogName))  )
  starCatalog = LoadCatalog('Hipparcos',4.2);
  d           = StarDataGeneration( starCatalog, fieldOfView, angularResolution );
  SaveStructure( d, FileFullpath(catalogName) );
else
  d = load(catalogName);
end

d.pixelMapScale = camera.fScale;

Adjust intensity for the camera gain

%--------------------------------------
d.starMatrix(1,:) = d.starMatrix(1,:)*camera.gain;

Loop

%------
nGood  = 0;
nStars = 0;

for j = 1:nSim
	% Generate a random quaternion, create an image, and identify stars.

  fprintf(1,'\n-----------\nRun %i\n-----------\n',j);

  qECIToBody      = QRand;
  [rA, dec]       = Q2RADec( [0;0;1], qECIToBody );
  fprintf(1,'RA: %f Dec: %f\n',rA*180/pi,dec*180/pi);
  bBodyToCamera   = [0 0  1;0 1 0;-1 0 0];
  bECIToCamera    = bBodyToCamera*Q2Mat(qECIToBody);

  % Create measurements using a pinhole camera model
  starMeasurement = PinholeStarCamera( bECIToCamera, camera, d.starCatalog, plotStars );
  if (plotStars)
    str = get(gcf,'name');
    set(gcf,'name',['Run ' num2str(j) ': ' str]);
    drawnow
  end
  % Identify the stars
  [starID, uMeas, uCatalog] = StarIdentification( starMeasurement, d, options, plotStars );
  if (plotStars)
    pos = get(gcf,'position');
    str = get(gcf,'name');
    set(gcf,'position',[pos(1)+pos(3) pos(2:4)]);
    set(gcf,'name',['Run ' num2str(j) ': ' str]);
    drawnow
  end

  if( ~isempty(uMeas) )

    % Determine the attitude
    %-----------------------
    starID
    [qMeas, bMeas] = QFromU( uMeas, uCatalog );
    qECIToBodyMeas = Mat2Q( (bMeas*bBodyToCamera));

    if( ~isempty(qMeas) )
	    nGood  = nGood + 1;
      nStars = nStars + length(starID);
      fprintf(1,'qTrue     = [%8.4f %8.4f %8.4f %8.4f]\nqEstimate = [%8.4f %8.4f %8.4f %8.4f]\nerror = %12.4e\n',...
          qECIToBody,QPose(qECIToBodyMeas),norm(qECIToBody-QPose(qECIToBodyMeas)));
    else
      fprintf(1,'qTrue = [%8.4f %8.4f %8.4f %8.4f] No estimate possible.\n',qECIToBody);
    end
  end
end

if( nGood > 0 )
  fprintf(1,'\n%i out of %i tests produced a valid attitude using an average of %i stars\n',...
      nGood,nSim,floor(nStars/nGood));
end


%--------------------------------------
% PSS internal file version information
%--------------------------------------

-----------

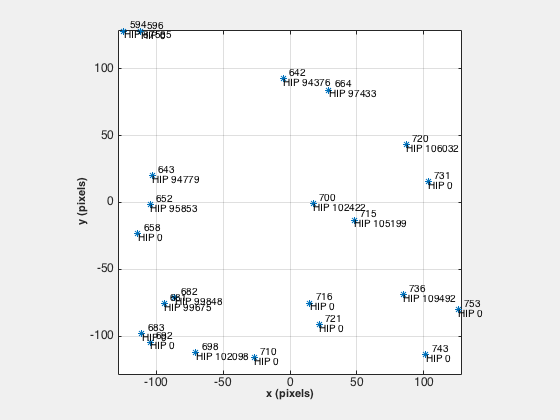

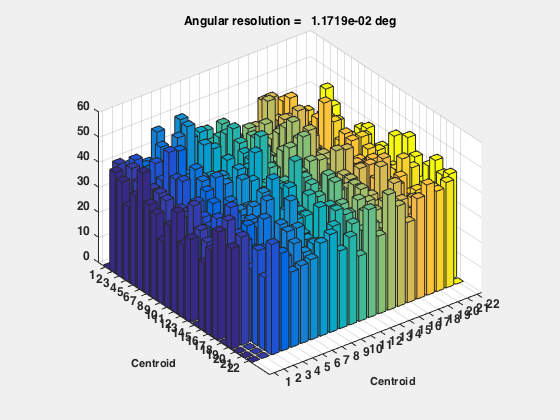

Run 1
-----------
RA: 72.955595 Dec: 17.942173
Table of Star Names
-------------------
Number Name
   594
   596
   642
   643
   652 IOT Cy
   658
   664
   681
   682
   683
   692
   698 Dene
   700
   710
   715 Alderami
   716
   720
   721
   731
   736
   743
   753
starID =
  Columns 1 through 13
   594   596   642   643   652   658   664   681   682   683   692   698   700
  Columns 14 through 22
   710   715   716   720   721   731   736   743   753
qTrue     = [  0.5383   0.2457  -0.5344  -0.6035]
qEstimate = [  0.5383   0.2457  -0.5344  -0.6035]
error =   5.6132e-16

-----------

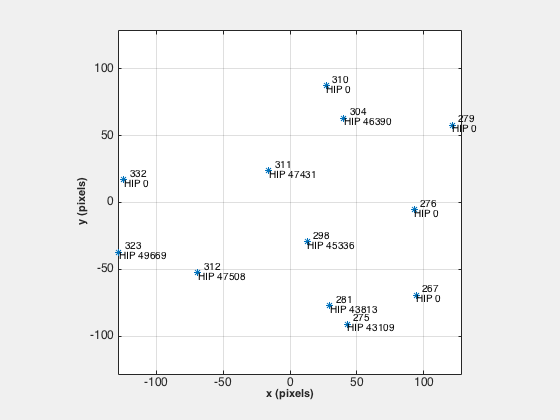

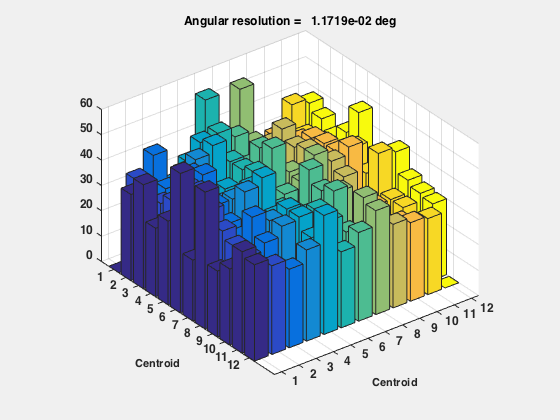

Run 2
-----------
RA: 51.963516 Dec: -33.158233
Table of Star Names
-------------------
Number Name
   267
   275
   276
   279
   281
   298
   304 Alphar
   310
   311
   312
   323 Regulu
   332
starID =
   267   275   276   279   281   298   304   310   311   312   323   332
qTrue     = [  0.4503   0.8308  -0.2884   0.1541]
qEstimate = [  0.4503   0.8308  -0.2884   0.1541]
error =   5.2369e-16

-----------

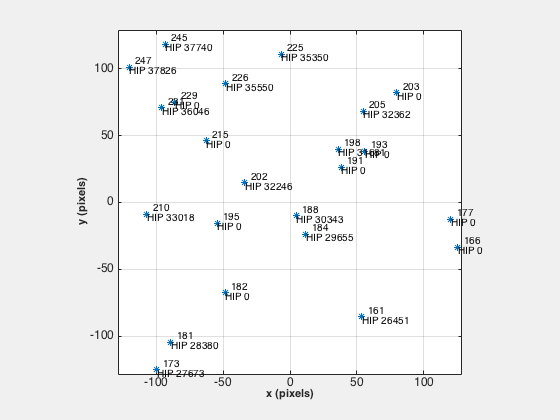

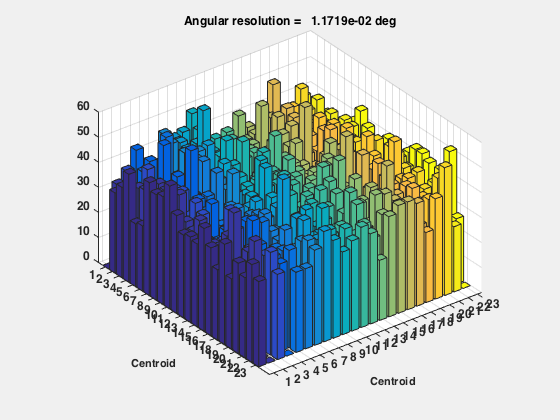

Run 3
-----------
RA: 42.687506 Dec: -54.574573
Table of Star Names
-------------------
Number Name
   161
   166
   173
   177
   181
   182
   184
   188
   191
   193
   195
   198 GAM Ge
   202
   203
   205
   210
   215
   225
   226
   229
   231
   245
   247 Pollu
starID =
  Columns 1 through 13
   161   166   173   177   181   182   184   188   191   193   195   198   202
  Columns 14 through 23
   203   205   210   215   225   226   229   231   245   247
qTrue     = [  0.3038   0.6822  -0.6649   0.0162]
qEstimate = [  0.3038   0.6822  -0.6649   0.0162]
error =   5.6899e-16

-----------

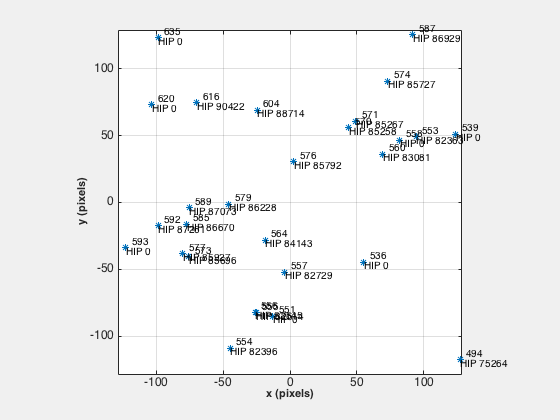

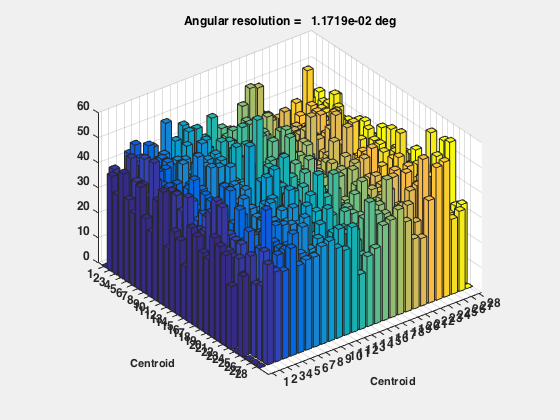

Run 4
-----------
RA: 131.905939 Dec: -29.360649
Table of Star Names
-------------------
Number Name
   494
   536
   539
   551
   553
   554
   555
   556
   557
   558
   560
   564
   570
   571
   573
   574
   576
   577 Shaul
   579
   585
   587
   589
   592
   593
   604
   616
   620
   635
starID =
  Columns 1 through 13
   494   536   539   551   553   554   555   556   557   558   560   564   570
  Columns 14 through 26
   571   573   574   576   577   579   585   587   589   592   593   604   616
  Columns 27 through 28
   620   635
qTrue     = [  0.5003   0.5595   0.6574   0.0676]
qEstimate = [  0.5003   0.5595   0.6574   0.0676]
error =   3.6428e-16

-----------

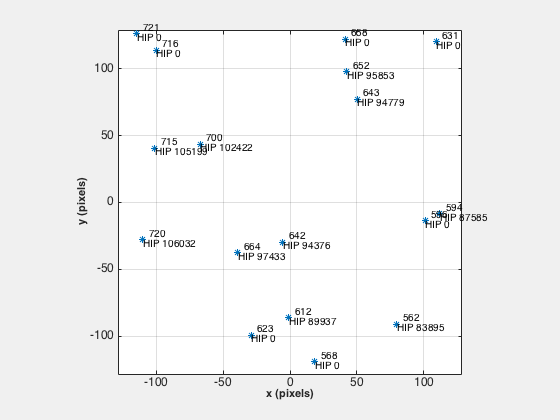

Run 5
-----------
RA: -133.839722 Dec: -11.607799
Table of Star Names
-------------------
Number Name
   562
   568
   594
   596
   612
   623
   631
   642
   643
   652 IOT Cy
   658
   664
   700
   715 Alderami
   716
   720
   721
starID =
  Columns 1 through 13
   562   568   594   596   612   623   631   642   643   652   658   664   700
  Columns 14 through 17
   715   716   720   721
qTrue     = [  0.1260  -0.6374  -0.4408   0.6193]
qEstimate = [  0.1260  -0.6374  -0.4408   0.6193]
error =   4.9728e-16

-----------

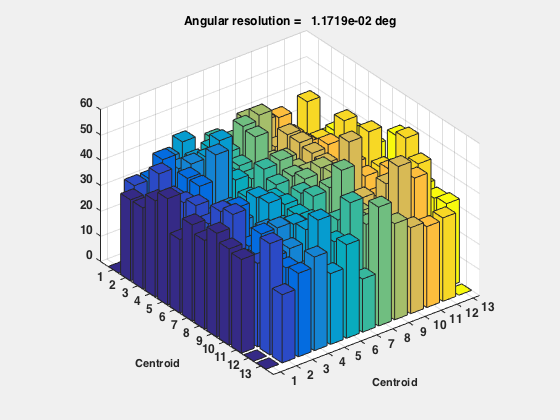

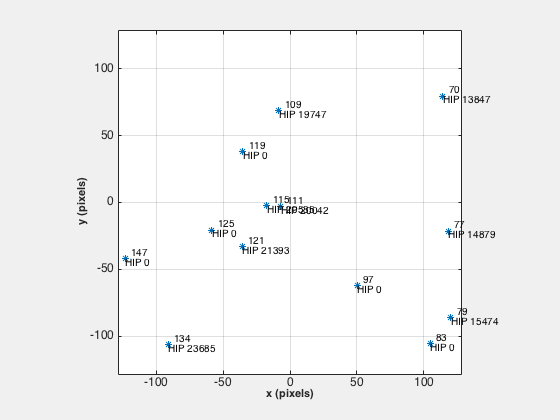

Run 6
-----------
RA: -22.718027 Dec: 5.641214
Table of Star Names
-------------------
Number Name
    70 TET02 Er
    77
    79
    83
    97
   109
   111
   115 d Er
   119
   121
   125
   134
   147
starID =
    70    77    79    83    97   109   111   115   119   121   125   134   147
qTrue     = [  0.2104   0.5202  -0.4245   0.7105]
qEstimate = [  0.2104   0.5202  -0.4245   0.7105]
error =   4.2276e-16

-----------

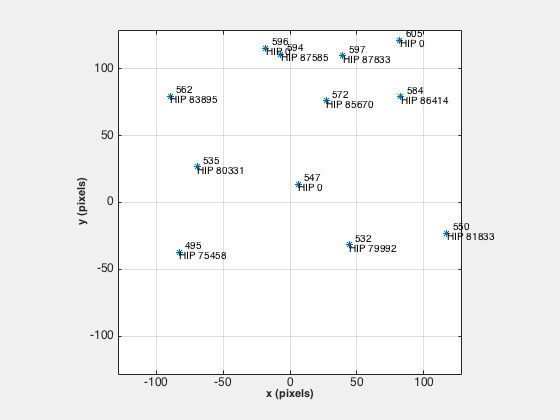

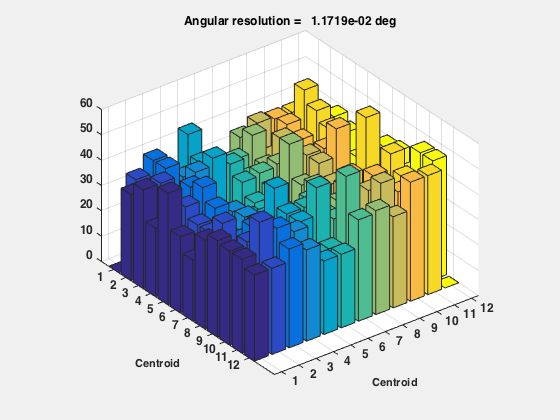

Run 7
-----------
RA: -84.184298 Dec: -33.703217
Table of Star Names
-------------------
Number Name
   495
   532
   535
   547
   550
   562
   572
   584
   594
   596
   597 GAM Dr
   605
starID =
   495   532   535   547   550   562   572   584   594   596   597   605
qTrue     = [  0.3932  -0.6817  -0.5593   0.2607]
qEstimate = [  0.3932  -0.6817  -0.5593   0.2607]
error =   2.0015e-16

-----------

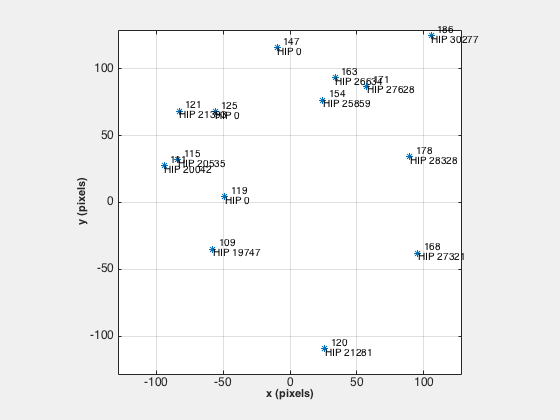

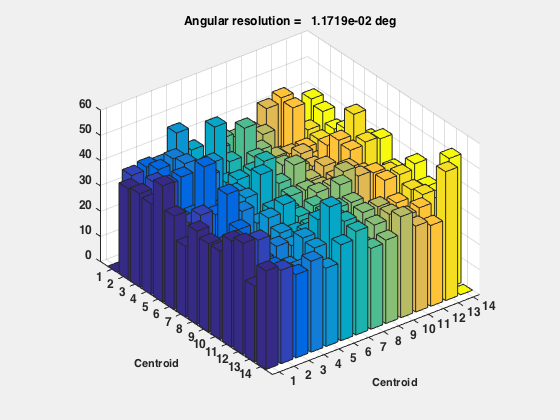

Run 8
-----------
RA: -175.663306 Dec: -20.496385
Table of Star Names
-------------------
Number Name
   109
   111
   115 d Er
   119
   120
   121
   125
   147
   154
   163
   168
   171
   178
   186
starID =
  Columns 1 through 13
   109   111   115   119   120   121   125   147   154   163   168   171   178
  Column 14
   186
qTrue     = [  0.5363  -0.3362   0.7497   0.1932]
qEstimate = [  0.5363  -0.3362   0.7497   0.1932]
error =   6.1125e-16

-----------

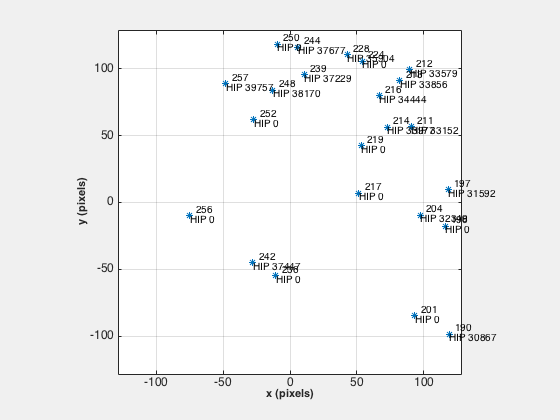

Run 9
-----------
RA: 19.728100 Dec: -12.491299
Table of Star Names
-------------------
Number Name
   190
   196
   197
   201
   204 Siriu
   211
   212 Adhara
   213
   214
   216
   217
   219
   224
   228
   236
   239
   242
   244
   248
   250
   252
   256
   257
starID =
  Columns 1 through 13
   190   196   197   201   204   211   212   213   214   216   217   219   224
  Columns 14 through 23
   228   236   239   242   244   248   250   252   256   257
qTrue     = [  0.4571   0.6938  -0.3561   0.4277]
qEstimate = [  0.4571   0.6938  -0.3561   0.4277]
error =   9.0024e-16

-----------

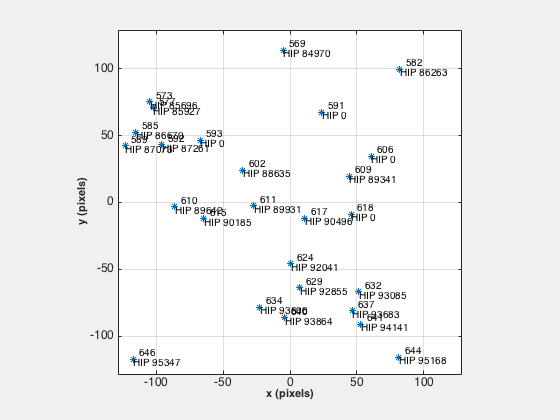

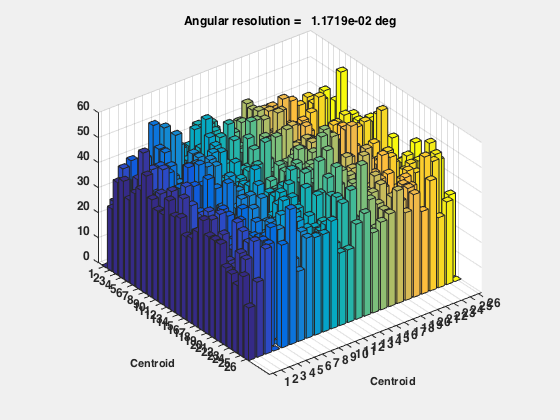

Run 10
-----------
RA: -71.187650 Dec: 62.764387
Table of Star Names
-------------------
Number Name
   569
   573
   577 Shaul
   582
   585
   589
   591
   592
   593
   602 GAM Sg
   606
   609
   610
   611
   615 Kaus Australi
   617
   618
   624
   629 SIG Sg
   632
   634
   637
   640
   641
   644
   646
starID =
  Columns 1 through 13
   569   573   577   582   585   589   591   592   593   602   606   609   610
  Columns 14 through 26
   611   615   617   618   624   629   632   634   637   640   641   644   646
qTrue     = [  0.6455  -0.2048   0.1162  -0.7265]
qEstimate = [  0.6455  -0.2048   0.1162  -0.7265]
error =   5.4177e-16

10 out of 10 tests produced a valid attitude using an average of 19 stars
