Demonstrates star identification using the Hipparcos catalog.

------------------------------------------------------------------------
See also StarIdentification, StarDataGeneration, PinholeCamera, Q2Mat,
QRand, SaveStructure, ComputePixelMapScale, PinholeStarCamera, LoadCatalog
----------------------------------------------------------------------

Contents

%------------------------------------------------------------------------
%   Copyright (c) 2001 Princeton Satellite Systems, Inc.
%   All rights reserved.
%------------------------------------------------------------------------

demoMode           = 'polar'; % demoMode = 'random';
testIntensity      = 0; % Reduces the measurement to one star

Camera parameters

%------------------
pixels             = 1280;
degToRad           = pi/180;
fieldOfView        = 30*degToRad;
fScale             = ComputePixelMapScale( pixels, fieldOfView );
camera.fScale      = fScale;
camera.wX          = pixels;
camera.wY          = pixels;
camera.gain        = 1e9;

pixelInterpolation = 0.1;
angularResolution  = pixelInterpolation*(fieldOfView)/pixels;

catalogName        = 'HipparcosDemo.mat';

Set the directory to the location of this function

%---------------------------------------------------
cd(fileparts(which('HipparcosDemo')));

Create the catalog if it does not exist

%----------------------------------------
if( isempty(which(catalogName))  )
  vMCutoff    = 4.3; % 4.2 gives 1 polar stars, 4.5 gives 5
  starCatalog = LoadCatalog('Hipparcos',vMCutoff);
  d           = StarDataGeneration( starCatalog, fieldOfView, angularResolution );
  SaveStructure( d, catalogName );
else
  d           = load(catalogName);
end

Flag to plot the stars

%-----------------------
plotStars        = 1;

switch demoMode
  case 'polar'
	b = eye(3);
  case 'random'
	b = Q2Mat( QRand );
  otherwise
	disp(sprintf('%s is not an available demo mode',demoMode));
end

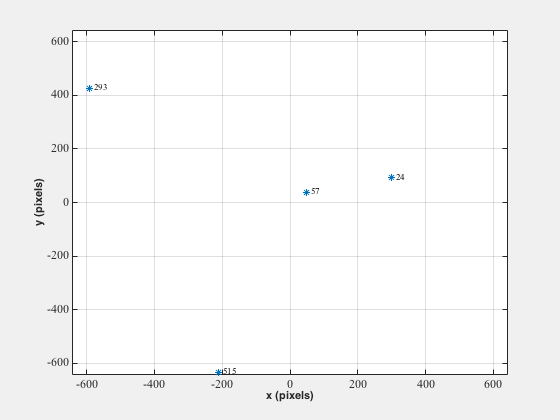

starMeasurement               = PinholeStarCamera( b, camera, d.starCatalog, plotStars )
d.pixelMapScale               = fScale;

d.starMatrix(1,:)             = d.starMatrix(1,:)*camera.gain;
if( testIntensity )
  starMeasurement.pixelLocation  = starMeasurement.pixelLocation(:,1);
  starMeasurement.pixelIntensity = starMeasurement.pixelIntensity(1);
end

Table of Star Names
-------------------
Number Name
    24
    57 Polari
   293
   515

starMeasurement =

              star: [24 57 293 515]
     pixelLocation: [2x4 double]
    pixelIntensity: [0.50746 4.1058 0.4891 0.52168]

This option is used if one star is in the field of view

%--------------------------------------------------------
options = struct('useAbsoluteIntensity',1);
options.intensityTolerance   = 0.01;
options.usePivot = 1;

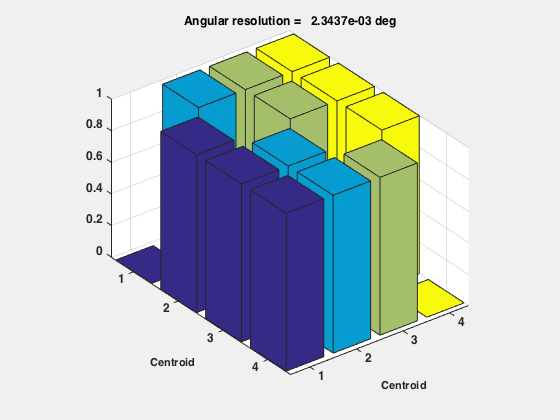

stars            = StarIdentification( starMeasurement, d, options, plotStars );

identifiedStars  = stars


% PSS internal file version information
%--------------------------------------

identifiedStars =

    24    57   293   515

Published with MATLAB® R2014b
