Solar system performance plot for straight-line trajectories.

Compute the duration to various interplanetary distances for a fixed payload mass. Creates two plots over the solar system distances to 40 au, one a range of distances for fixed power and the second a range of power for fixed distances.

------------------------------------------------------------------------
See also: ComputeDuration, Straight2DStructure, ComputePayloadFraction
------------------------------------------------------------------------

%--------------------------------------------------------------------------
%	Copyright (c) 2018 Princeton Satellite Systems, Inc.
% All rights reserved.
%--------------------------------------------------------------------------

Constants and Engine data

year = 365.25*86400;
au = Constant('au');

d = Straight2DStructure;
d.eta = 0.4;
d.sigma = 750;
d.mP = 1000;
d.uE = 100;
d.f = 0.05;

Time vs. Distance for specific power levels from 0.5 to 2 MW

P   = [0.5 1 2]*1e6;
dFv = [4 10 20 30 40];
dFs = sort([linspace(3,50) dFv]);
tF  = [];
lambda = [];
for j = 1:3
  for k = 1:length(dFs)
    d.dF = dFs(k)*au;
    tF(j,k) = ComputeDuration( P(j), d );
    d.tF = tF(j,k);
    lambda(j,k) = ComputePayloadFraction( d );
  end
end

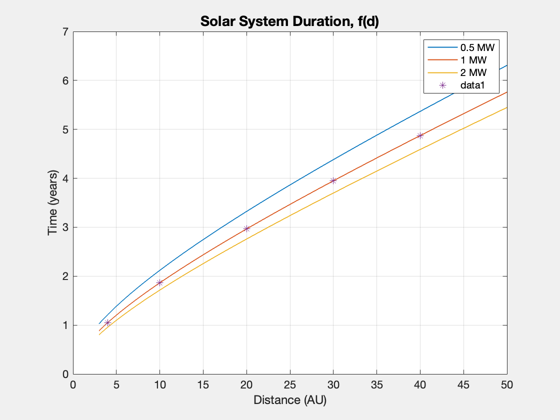

Plot2D(dFs,tF/year,'Distance (AU)','Time (years)','Solar System Duration, f(d)');
legend('0.5 MW','1 MW','2 MW')
[~,kF] = intersect(dFs,dFv);
hold on;
plot(dFv,tF(2,kF)/year,'*')

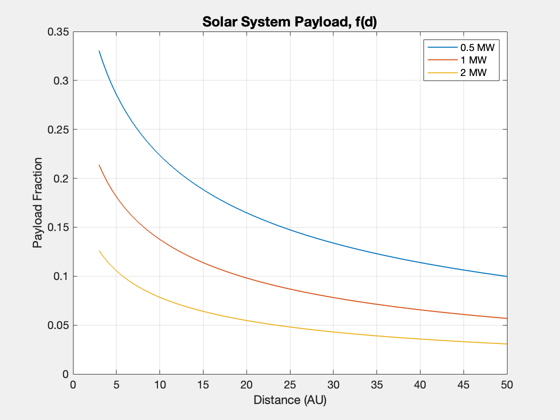

Plot2D(dFs,lambda,'Distance (AU)','Payload Fraction','Solar System Payload, f(d)');
legend('0.5 MW','1 MW','2 MW')

Time vs. Power for specific distances

Ps = linspace(0.5,2);
tF2  = [];
lambda2 = [];
for j = 1:length(dFv)
  d.dF = dFv(j)*au;
  for k = 1:length(Ps)
    tF2(j,k) = ComputeDuration( Ps(k)*1e6, d );
    d.tF = tF2(j,k);
    lambda2(j,k) = ComputePayloadFraction( d );
  end
end

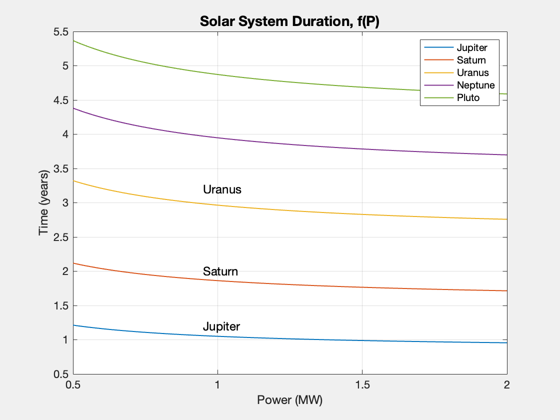

Plot2D(Ps,tF2/year,'Power (MW)','Time (years)','Solar System Duration, f(P)');
legend('Jupiter','Saturn','Uranus','Neptune','Pluto')
text(0.95,1.2,'Jupiter','fontsize',12)
text(0.95,2,'Saturn','fontsize',12)
text(0.95,3.2,'Uranus','fontsize',12)

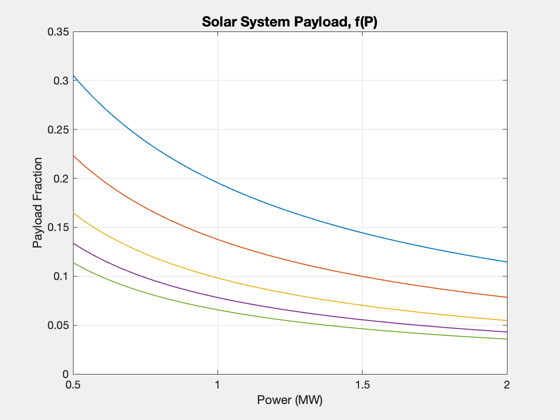

Plot2D(Ps,lambda2,'Power (MW)','Payload Fraction','Solar System Payload, f(P)');


%--------------------------------------
