NASA roadmap mission point solutions to Jupiter, Pluto, 125 AU

Calculate the straight-line, constant thrust delta-V's (point solutions).

1. Jupiter at 5 AU in  1 year  - about  98.5 km/s DV
2. Pluto at  40 AU in  5 years - about 151.7 km/s DV
3.          125 AU in 10 years - about 237.0 km/s DV

The delta-V's increase with each mission, but the average acceleration goes down.

See also ComputeDuration, ComputeThrust, ConstantAccelDV, EngineReport, Straight2DStructure, Constant, DisplayLatexTable, Plot2D

%--------------------------------------------------------------------------
% Copyright 2018 Princeton Satellite Systems, Inc. All rights reserved.
%--------------------------------------------------------------------------

Constants and initializations

year = 365.25*86400;    % s
au = Constant('au');

d = Straight2DStructure;
d.uE = 100;

DVt = [];
DVa = [];
Pwr = [];
tau = [];
dist = [];

5 AU, 1 year

kM = 1;
tau(kM) = 1*year;
dist(kM) = 5.2;

d.dF = dist(kM)*au;
d.tF = tau(kM);
avgDV = ConstantAccelDV( d );
DVa(kM) = avgDV;

thrust = ComputeThrust( d );
[sL,data] = EngineReport( thrust, d );

DVt(kM) = 2*data.vS;
TtoW = thrust/data.m0;

fprintf('----------------\n');
fprintf('5 AU in 1 year (Jupiter)\n');
DisplayLatexTable(sL);
fprintf('-----\n');
fprintf('Constant accel DV:\t%.1f km/s\n',avgDV);
fprintf('Constant thrust DV:\t%.1f \n',DVt(kM));
fprintf('T/W:\t%2.g \n',TtoW);
----------------
5 AU in 1 year (Jupiter)
           ---- INPUTS ----           --    --
                    Payload         1000    kg
           Desired distance         5.20    AU
                Travel time         1.00 years
           ---- ENGINE ----           --    --
          Thrust Efficiency         0.40
           Exhaust velocity          100  km/s
             Specific Power         1.00 kW/kg
         Fuel Tank Fraction         0.05
          ---- OUTPUTS ----           --    --
      Payload Mass Fraction         0.08 mP/m0
     Payload Power Fraction         3.05 kW/kg
                    Delta-V       100.68  km/s
---- PAYLOAD DEPENDENT ----           --    --
                     Thrust        24.43     N
                      Power         3.05    MW
                 Total Mass     12149.12    kg
                   Mass Dry      4439.34    kg
                Mass Engine      3053.85    kg
                  Mass Fuel      7709.78    kg
                  Flow Rate         0.24   g/s
-----
Constant accel DV:	98.6 km/s
Constant thrust DV:	100.7
T/W:	0.002

40 AU, 5 years

kM = 2;
tau(kM) = 5*year;
dist(kM) = 40;

d.dF    = dist(kM)*au;
d.tF    = tau(kM);
d.uE    = 80;
d.sigma = 750;
d.eta   = 0.3;
avgDV   = ConstantAccelDV( d );
DVa(kM) = avgDV;

thrust = ComputeThrust( d );
[sL,data] = EngineReport( thrust, d );

DVt(kM) = 2*data.vS;
TtoW = thrust/data.m0;

fprintf('----------------\n');
fprintf('40 AU in 5 years (Pluto)\n');
DisplayLatexTable(sL);
fprintf('-----\n');
fprintf('Constant accel DV:\t%.1f \n',avgDV);
fprintf('Constant thrust DV:\t%.1f \n',DVt(kM));
fprintf('T/W:\t%2.g \n',TtoW);
----------------
40 AU in 5 years (Pluto)
           ---- INPUTS ----           --    --
                    Payload         1000    kg
           Desired distance        40.00    AU
                Travel time         5.00 years
           ---- ENGINE ----           --    --
          Thrust Efficiency         0.30
           Exhaust velocity           80  km/s
             Specific Power         0.75 kW/kg
         Fuel Tank Fraction         0.05
          ---- OUTPUTS ----           --    --
      Payload Mass Fraction         0.01 mP/m0
     Payload Power Fraction        11.76 kW/kg
                    Delta-V       164.89  km/s
---- PAYLOAD DEPENDENT ----           --    --
                     Thrust        88.17     N
                      Power        11.76    MW
                 Total Mass    199264.54    kg
                   Mass Dry     25368.87    kg
                Mass Engine     15674.09    kg
                  Mass Fuel    173895.67    kg
                  Flow Rate         1.10   g/s
-----
Constant accel DV:	151.7
Constant thrust DV:	164.9
T/W:	0.0004

125 AU, 10 years

kM = 3;
tau(kM) = 10*year;
dist(kM) = 125;

d.dF = dist(kM)*au;
d.tF = tau(kM);
d.uE = 140;
d.mP = 500;
d.eta = 0.3;

% Can 1 MW do the mission?
power = linspace(0.5,5,20);
tMin = ComputeDuration( power*1e6, d );

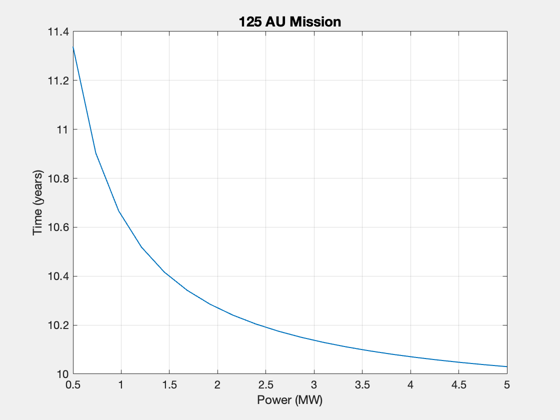

Plot2D(power,tMin/86400/365.25,'Power (MW)','Time (years)','125 AU Mission')

%d.uE = 120;
avgDV = ConstantAccelDV( d );
DVa(kM) = avgDV;

thrust = ComputeThrust( d );
[sL,data] = EngineReport( thrust, d );
DVt(kM) = 2*data.vS;
TtoW = thrust/data.m0;

fprintf('----------------\n');
fprintf('125 AU in 10 years (interstellar precursor)\n');
DisplayLatexTable(sL);
fprintf('-----\n');
fprintf('Constant accel DV:\t%.1f \n',avgDV);
fprintf('Constant thrust DV:\t%.1f \n',DVt(kM));
fprintf('T/W:\t%2.g \n',TtoW);


%--------------------------------------

% $Id: 5de261a05a62ed568a2a6fccea0e10723e840a3e $
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
Warning: EngineReport: Distance not achieved!
----------------
125 AU in 10 years (interstellar precursor)
           ---- INPUTS ----           --    --
                    Payload          500    kg
           Desired distance       125.00    AU
                Travel time        10.00 years
           ---- ENGINE ----           --    --
          Thrust Efficiency         0.30
           Exhaust velocity          140  km/s
             Specific Power         0.75 kW/kg
         Fuel Tank Fraction         0.05
          ---- OUTPUTS ----           --    --
      Payload Mass Fraction         0.01 mP/m0
     Payload Power Fraction        12.25 kW/kg
                    Delta-V       252.93  km/s
---- PAYLOAD DEPENDENT ----           --    --
                     Thrust        26.24     N
                      Power         6.12    MW
                 Total Mass     70767.70    kg
                   Mass Dry     11620.76    kg
                Mass Engine      8163.42    kg
                  Mass Fuel     59146.94    kg
                  Flow Rate         0.19   g/s
-----
Constant accel DV:	237.0
Constant thrust DV:	252.9
T/W:	0.0004
